Overview

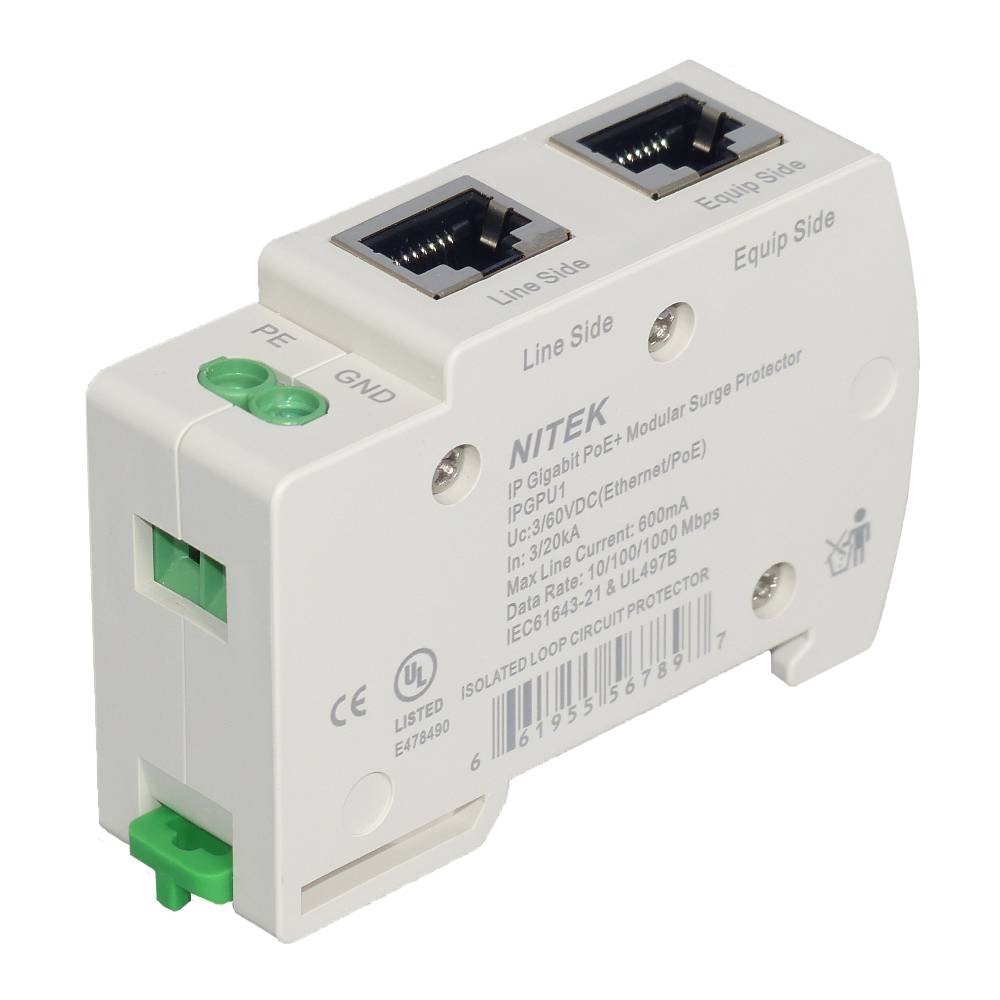

The IPGPU1 is a single port in-line, 10/100/1000 Ethernet & POE+ surge protector with shielded RJ45 connectors. It works for both shielded and non-shielded applications. The DIN rail mounting design enables multiple units to be installed side-by-side in a compact space. The unit has shielded RJ45 jacks with dual point screw earth-ground connections for easy and quick installation. The dual earth connection allows for breaking ground loops. The RK1GP rack mount DIN rail is sold separately.

Features

Single Channel Multi-Stage
Modular top hat 35mm din rail design
For both Shielded and non-Shielded applications
Protects IP data and PoE circuits
Supports megapixel IP cameras
Compatible with PoE+ power
<1 Nanosecond clamping time
IEC International Standard 60715
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Electrical Specs

Normal Operating Voltage: 2.8V(Ethernet) / 48V(PoE)
Max. Continuous Operating Voltage: 3V(Ethernet) / 60(PoE)
Nominal Discharge Current (8/20us): 3kA (line-to-line)
Max. Discharge Current (8/20us): 20kA (line-to-earth)
Pairs Protected: 1-2, 3-6, 4-5, 7-8
Protective Element: TVS, GDT
PoE voltage range: 48-56VDC
Network Transmission Rates: 10/100/1000
Response Time (tA): <1ns
Maximum Operating Altitude: Surge Life at 0.5db @100Mhz
Cross-section area if the earth lead: 3mm2 multi strand / flexible

Connection Mode

RJ45 to RJ45 (in-line)

Environmental / Temperature

Operating: -40°C to 80°C / -40°F to 176°F
Storage: -40°C to 80°C / -40°F to 176°F
Humidity: Up to 95% non-condensing
Housing Material: Thermoplastic UL 94 V-0
Protection Rating (IP Code): IP20
Din Rail EN60715: 35mm top-hat rail
Terminal Screw Torque: Max 0.25Nm

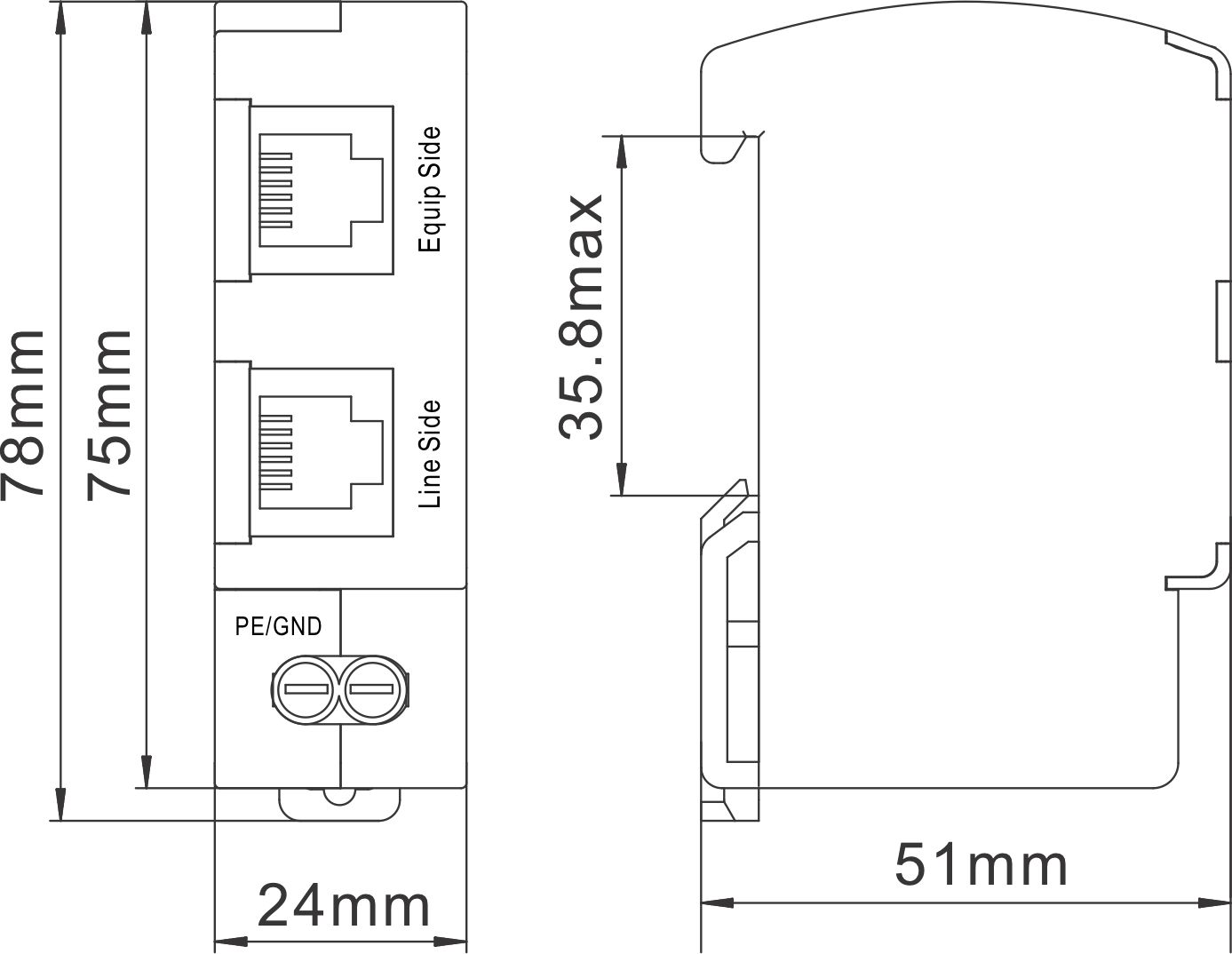

Mechanical Dimensions (L x W x H)

78mm x 51mm x 24mm / 3.1″ x 2.0″ x 0.9″

Shipping Dimensions (L x W x H)

Package: 152mm x 152mm x 152mm / 6″ x 6″ x 6″
Weight: .45kg / 1lbs

Warranty Information

Limited Lifetime Warranty
