UTPPTR4

Categories: , Tags: ,

Analog Camera Surge Protector for Building Entrance – UTP to UTP for Video and Data (RS422)

Overview

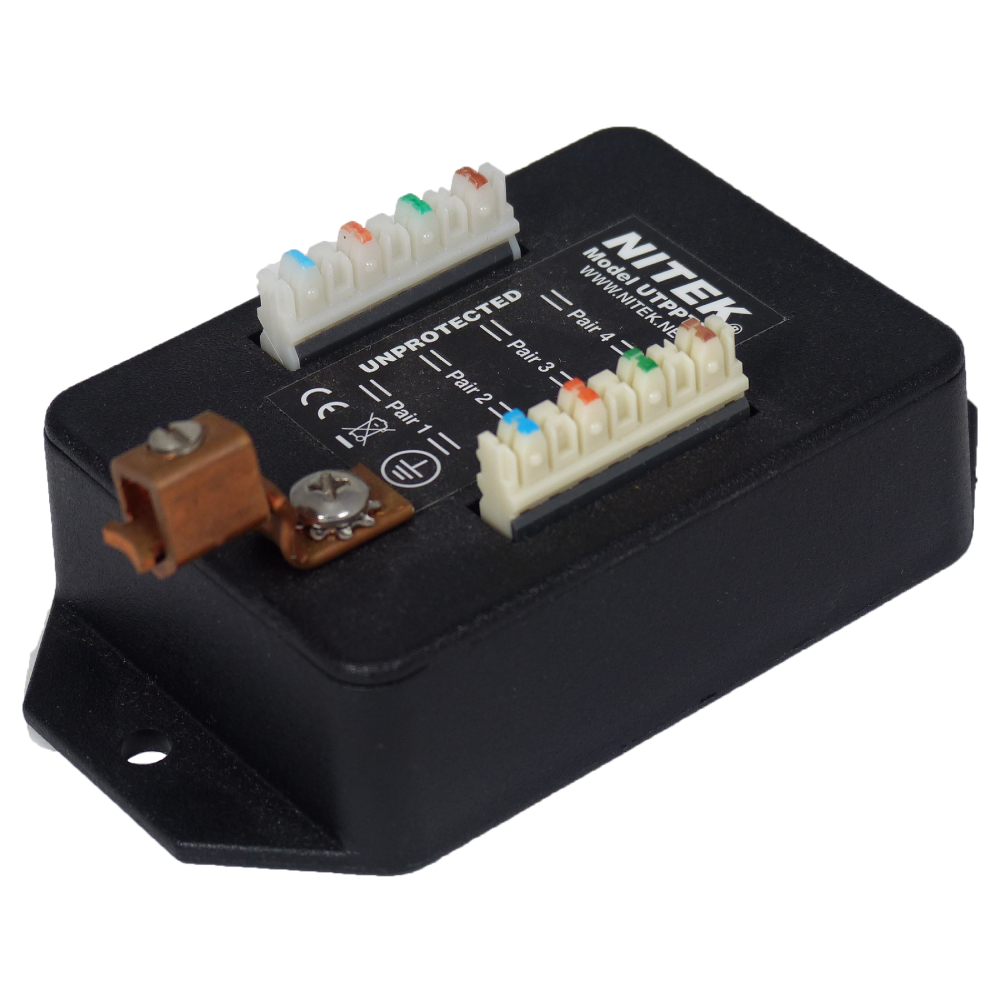

Multi-function in-line surge protector for fixed and twisted-pair transmissions. The UTPPTR4 is a four-channel, multi-function surge protector for twisted pair transmission of video and RS422 data signals. The UTPPTR4 provides multi-stage surge protection to data control boards or other accessories connected to the system. The unit is designed as a building entrance protector. The UTPPTR4 provides a heavy, single-point ground connection and is easily installed in minutes.

Features

  • Unique Multi-Stage Design
  • 15V clamping voltage
  • Heavy single point ground
  • Easy to Setup and Install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Connection Method
  • Punchdown terminals
Clamping Voltage
  • 15V
Impedance
  • 110 ohms
Environmental / Temperature
  • Operating: -25°C to 65°C / -13°F to 149°F
  • Storage: -45°C to 85°C / -49°F to 185°F
Frequency
  • DC to 10 MHz
Mechanical Dimensions (W x H x L)
  • 4.3″ x 1.7″ x 2.5″ / 109mm x 43mm x 64mm
Shipping Dimensions (W x H x L)
  • Package:
  • Weight: 1lb

Warranty Information

Limited Lifetime Warranty
