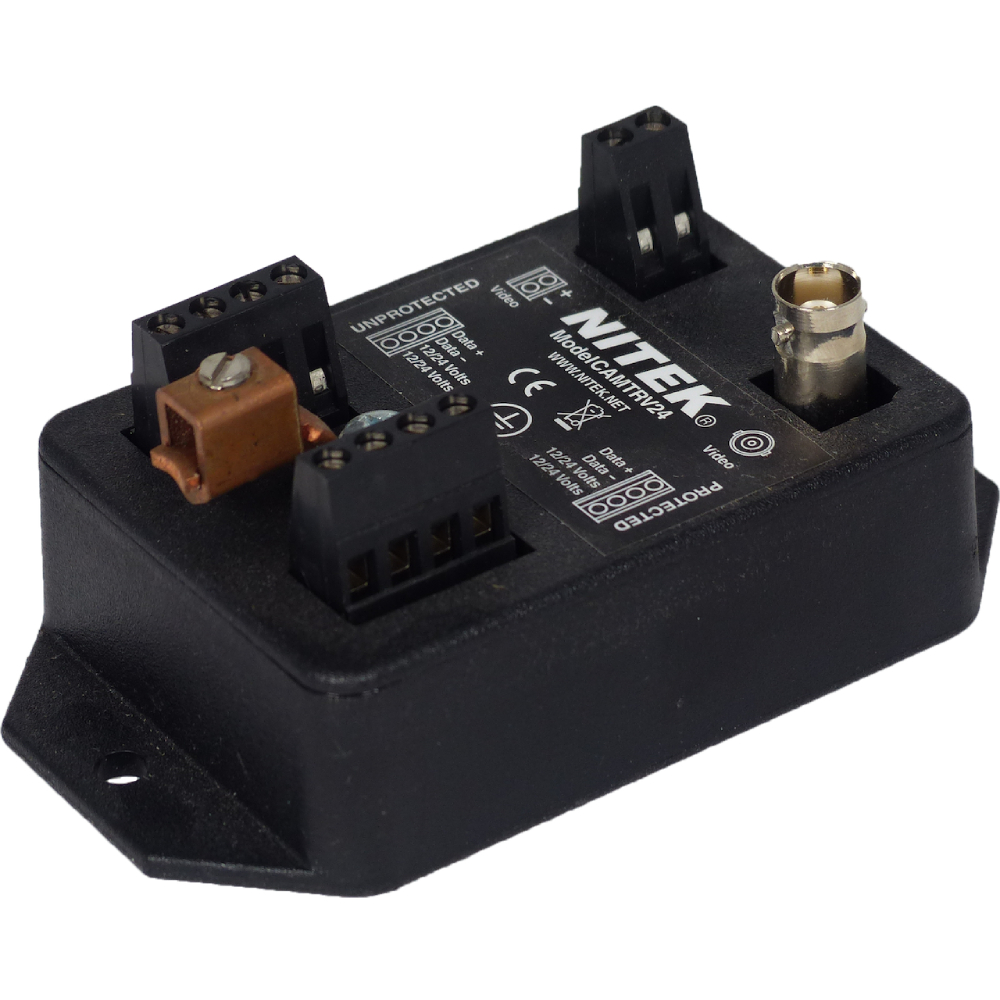

Analog Camera Surge Protector for PTZ – UTP and BNC for Video, – 2 Wire Data (RS422) and Power (24VAC)

Overview

The CAMPTRV24 is a single channel, UTP video balun for unshielded twisted pair video transmission that includes a multi-function surge protector for twisted pair data and the 12 or 24-volt camera supply. The CAMTRV24 provides multi-stage surge protection to a single camera system and P/T/Z unit for each of these functions. The unit can be used at the camera or head-end. The CAMPTRV24 is ideally suited for outdoor cameras. Where extreme protection on all signal connections is required.

The unit has screw terminals at the input and output for connection to the twisted pair video and screw terminals at the inputs and outputs for connection to the data and power. The CAMTRV24 provides a heavy, single-point ground connection and is easily installed in minutes.

Features

  • Unique Multi-Stage Design
  • Insertion Loss <0.2 dB
  • Transient Protection on IEC 61000-4-4 (EFT) 40A (5/50ns)
  • Transient Protection on IEC 61000-4-5 (Lightning) 24A (8/20us)
  • 2.8V Clamping Voltage
  • Multi-Function-Protects Video, Data, and Camera Power
  • Heavy Signal Point Ground
  • Easy to Setup and Install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Connection Method
  • Video – Screw terminals
  • Video -BNC connector
  • Power – Screw terminals
  • Control – Screw terminals
Clamping Voltage
  • Video-2.8V
  • POwer-33Vms
  • Control-4.7V
Transient Protection
  • Video: IEC 61000-4-5 150A (8/20us) 6V
  • Power: IEC 6100-4-5 2000A (8/20us) 33ACrms
  • Control: Maximum Surge Current 25A (1ms) 5.0Vdc
Video Insertion Loss
  • <0.2dB
Impedance
  • 50 or 75 Ohms
Environmental/Temperature
  • Operating: -25°C to 65°C / -13°F to 149°F
  • Storage: -45°C to 85°C / -49°F to 185°F
Frequency
  • DC to 10 MHz
Mechanical Dimensions (W x H x L)
  • 4.3″ x 1.7″ x 2.5″ / 109mm x 43mm x 64mm
Shipping Dimensions (W x H x L)
  • Package:
  • Weight: 1lb

Warranty Information

Limited Lifetime Warranty
