Overview

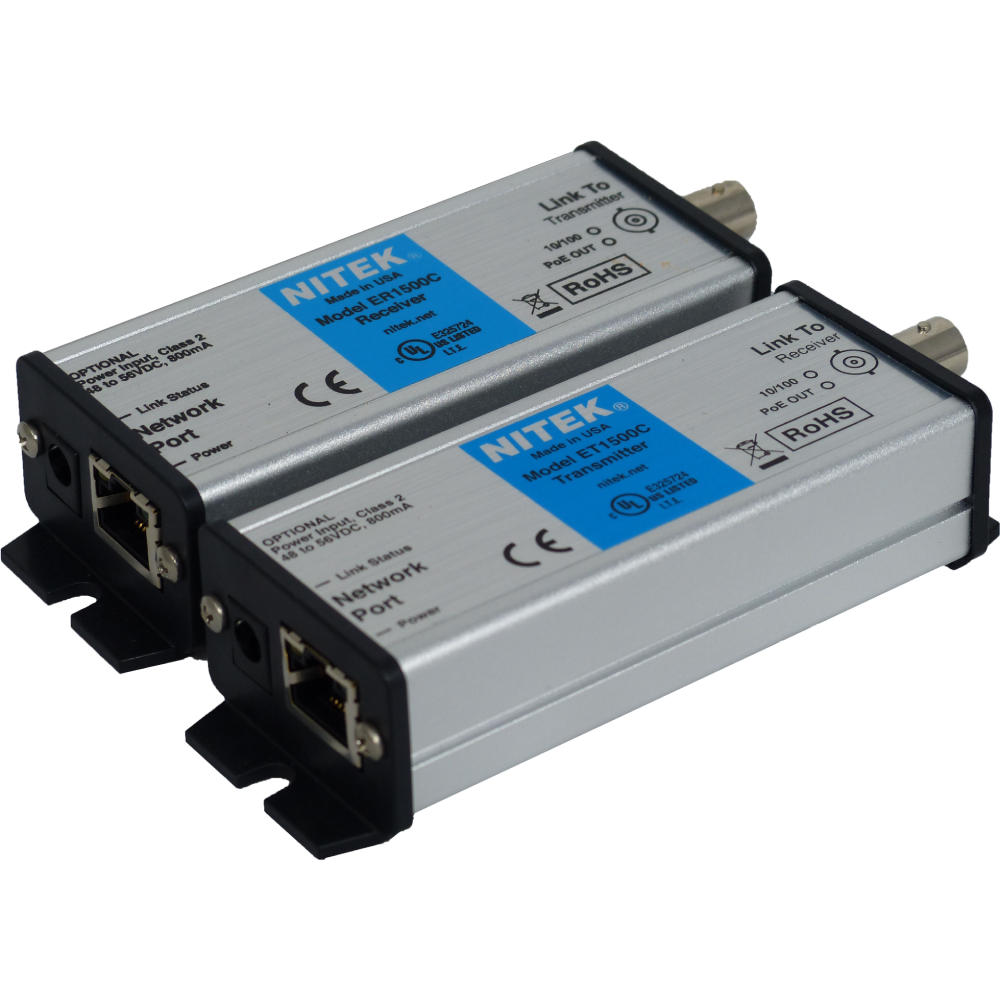

The EL1500C-P is a transmitter/receiver set consisting of the ER1500C and the ET1500C. These environmentally hardened products provide 10/100 Ethernet and Power Over Ethernet (PoE) at distances of up to 500m over RG-59 or RG-6 coaxial cabling.

At the head end, the ER1500C will connect to the LAN switch for data and request IEEE802.af PoE power. For non-PoE switches, power can be injected at the head end with an optional PS48 power supply. At the far end, the coax will terminate at the ET1500C which will provide 10/100 Ethernet connectivity and available power at that distance. For higher power requirements, power can be re-injected at the power port of the ET1500C with an optional PS48.

Features

Includes Transmitter and Receiver
Allows power injection at transmitter far end
Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
Supports any IP network device & 4K cameras
Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
Fully transparent to the network, no MAC or IP addressing required
LED indicators for power, network rate, link status and PoE output

The optional power supply can insert PoE power for non-PoE switches
Short circuit, over-current and over-voltage protection
Ground loop isolation
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured and supported in the U.S.A.

Technical Specs

Max Operating Distance (each device)

Network Port: 100m
Link Port: 500m

Power

Requirements: 302.3at/af switch or optical power supply
Power Output: Meets IEEE802.3at/af
PoE Source: Local PSE or optional power supply

LED Connectivity Indicators

Indicators: for power, network rate, link status and PoE output

System Latency

System Latency: <1mS over 500m of RG-59

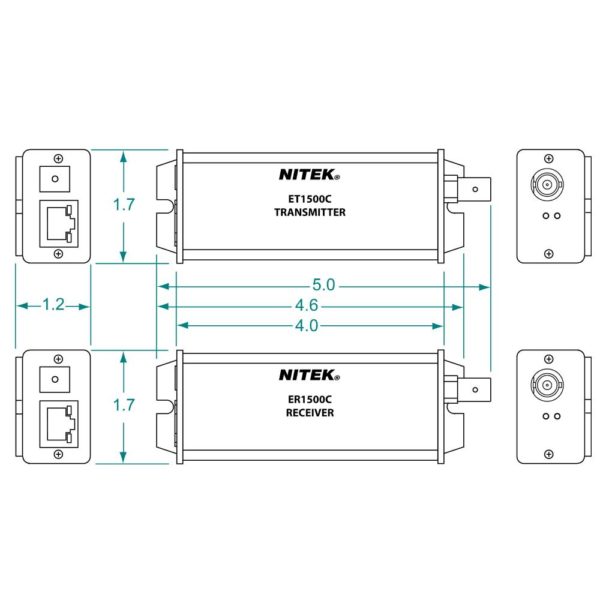

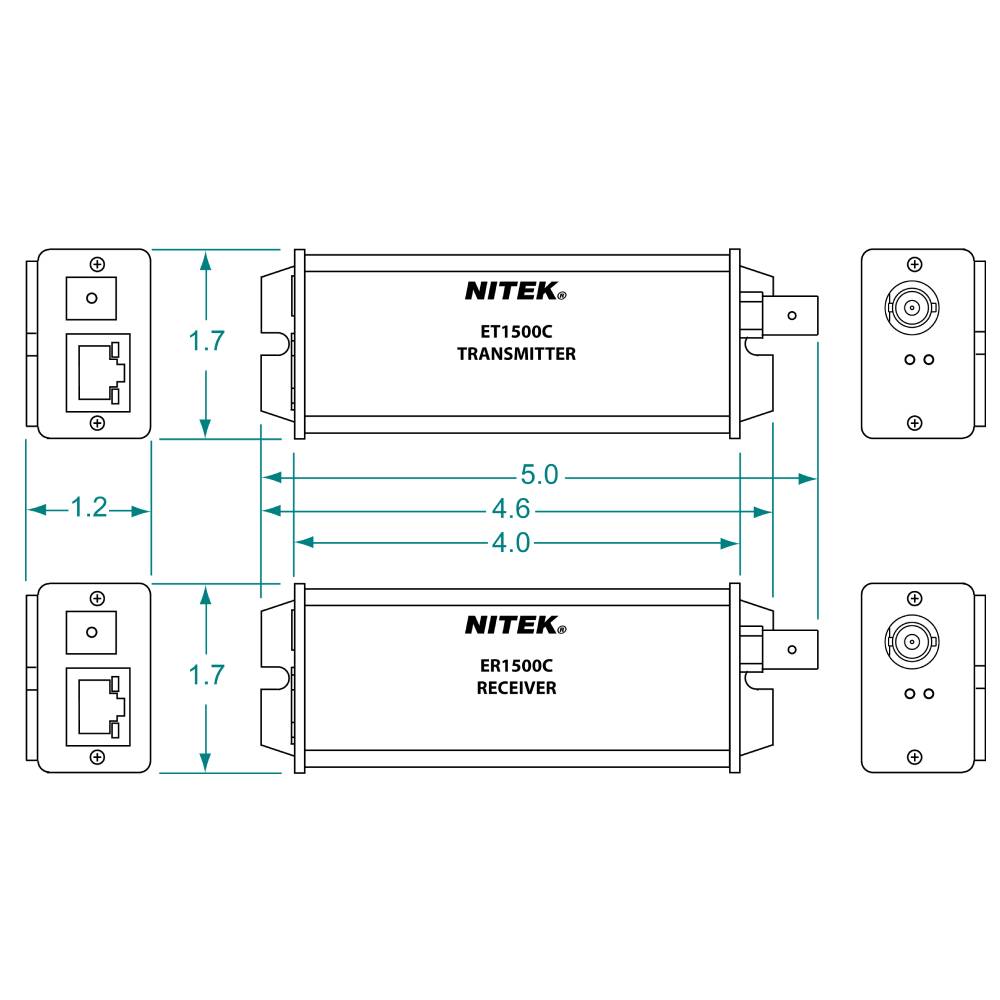

Mechanical Dimensions (L x W x H)

ER1500C:130mm x 43mm x 28mm / 5.1″ x 1.7″ x 1.1″
ET1500C: 130mm x 43mm x 28mm / 5.1″ x 1.7″ x 1.1″

Shipping Dimensions (L x W x H)

Package: 135mm x 195mm x 60mm / 3.3″ x 7.6″ x 2.2″
Weight: 0.90kg / 2lb

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing
Mean Time Between Failure: >100,000 Hours

Connectors (each device)

Network Port: 1 RJ45 Connector
Link Port: BNC Coax Jack

Rating / Listing

UL: IEC/UL 60950-1

NEMA TS-2: Temperature & Humidity NEMA 2.2.7

- Mechanical Vibration NEMA 2.2.8
- Mechanical Shock NEMA 2.2.9
- Operating Voltage NEMA 2.1.2
- Operating Frequency NEMA 2.1.8
- Transient Test NEMA 2.1.6 thru 2.1.8

Warranty Information

Limited Lifetime Warranty
