EL1500CW

SKU: P 661955150075 Categories: Coax, Etherstretch Tags: Set, Singe

Outdoor IP over Coax. Set includes: 1543C Transmitter, ER1500C Receiver, and Weatherproof Case.

Overview

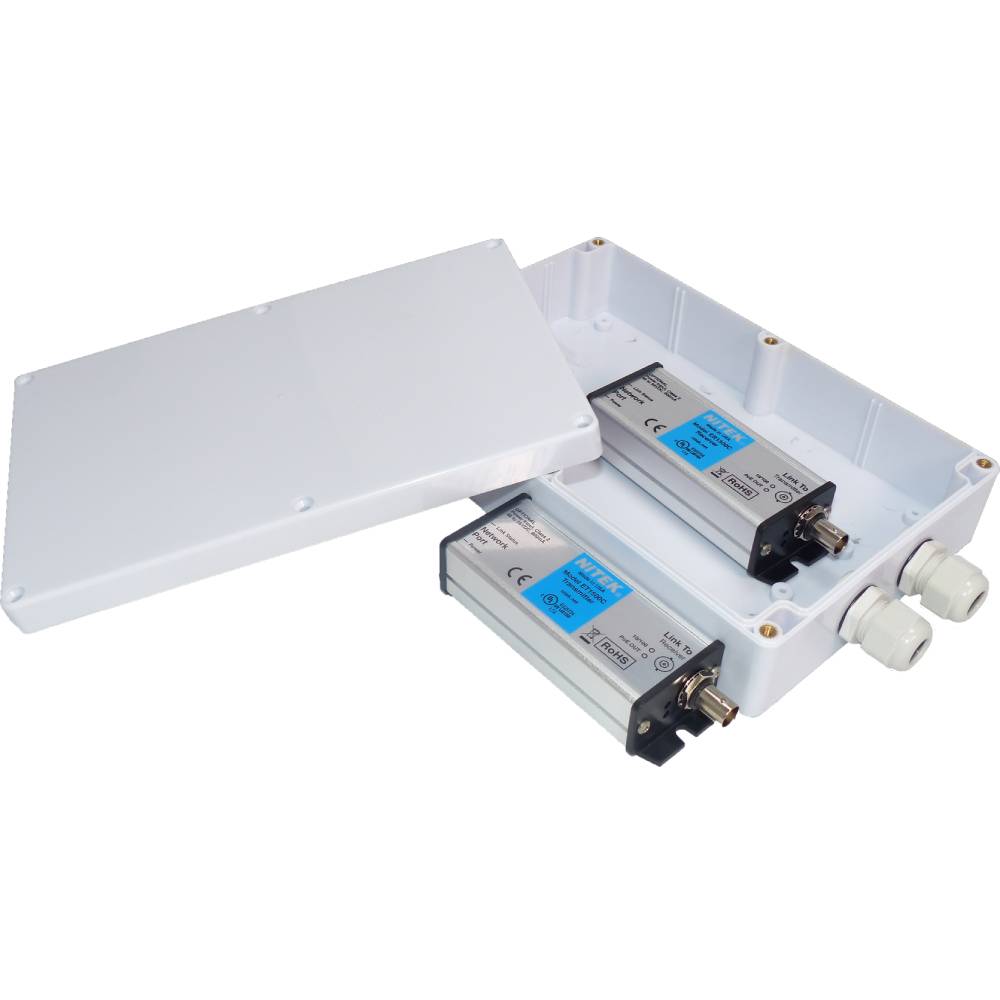

The EL1500CW is part of the EtherStretch solution for outdoor applications. The EL1500CW consists of an ET1500C mounted in a WP1325 enclosure for the camera side, and an ER1500C for the head end of the link. The EL1500CW is the complete solution for PoE power and 10/100 link extension over up to 500m of RG59 or RG6 coaxial cabling. The ER1500C sources power to the link by requesting power from a PoE switch or power up to 30W can be injected from an optional PS48 power supply.

The WP1325 enclosure (indicated by the “W” in the part number) is a polycarbonate high-impact NEMA 4X rated box equipped with neoprene gaskets to prevent the ingress of moisture and dust. The box comes with two bottom-side cable entries fitted with UL94V-2 rated nylon hex cable glands to maintain the weatherproof seal.

Features

Transmitter housed in a NEMA 4Xrated enclosure for outdoor applications
Media Converter Set (Includes Transmitter, Receiver, and Weatherproof Case)
IP over Coax cable
Extends to 500 meters with POE
Supports any IP network device & 4K cameras
Supports 10/100 and POE over Coax, Full Duplex
Supports IEEE802.3at (26.3W) and IEEE802.3f (15.4W)
Fully transparent to the network. No MAC or IP addressing is required.
LED indicators for network signals, link status, and power
The optional power supply can insert POE power for non-POE switches
Short circuit, over current, and over-voltage protection
Ground loop isolation
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance

Network Port: 100m
Link Port: 500m

Power

Requirements: 302.3at switch or optical power supply
Power Output: Meets IEEE802.3af & IEEE802.3at
POE Capabilities: POE Passthrough or optional power supply

LED Connectivity Indicators

Indicators: Network Signals, Link Status, and Power

System Latency

System Latency: <1mS over 600ft CAT5e

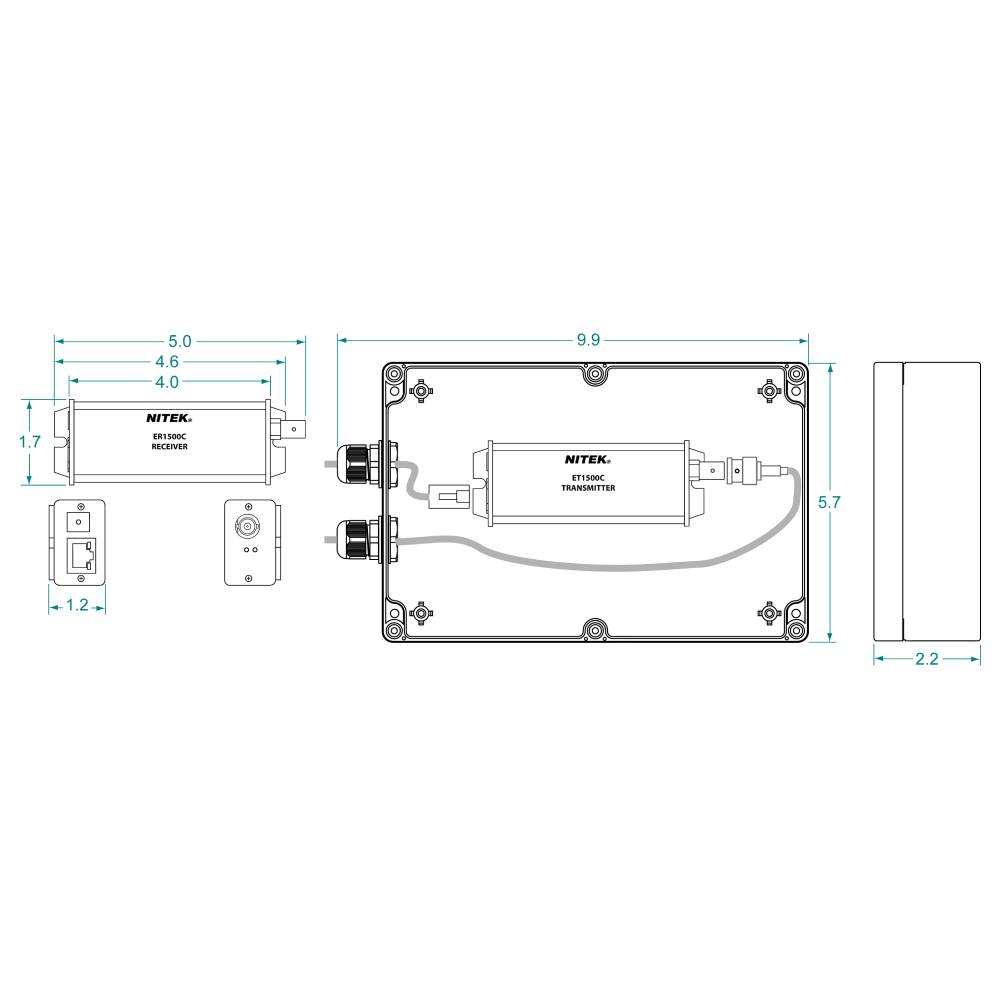

Mechanical Dimensions (L x W x H)

ER1500C: 5.1″ x 1.6″ x 1.1″
ET1543C: 1.2” x 1.7” x 5.0” including tabs & BNC
WP1325: 53mm x 252mm x 146mm / 2.1″ x 9.9″ x 5.7″

Shipping Dimensions (L x W x H)

Weight: 2.27kg / 5lbs

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing
Mean Time Between Failure: >100,000 Hours

Connectors

Network Port: 1 RJ45 Connector
Link Port: BNC Coax Jack

Rating/Listing

UL: IEC/UL 60950-1

NEMA TS-2: Temperature & Humidity NEMA 2.2.7

Mechanical Vibration NEMA 2.2.8
Mechanical Shock NEMA 2.2.9
Operating Voltage NEMA 2.1.2
Operating Frequency NEMA 2.1.8
Transient Test NEMA 2.1.6 thru 2.1.8

Warranty Information

Limited Lifetime Warranty
