EL4500C

SKU: P 661955450038 Categories: Coax, Etherstretch Tags: Multi - 4, Set

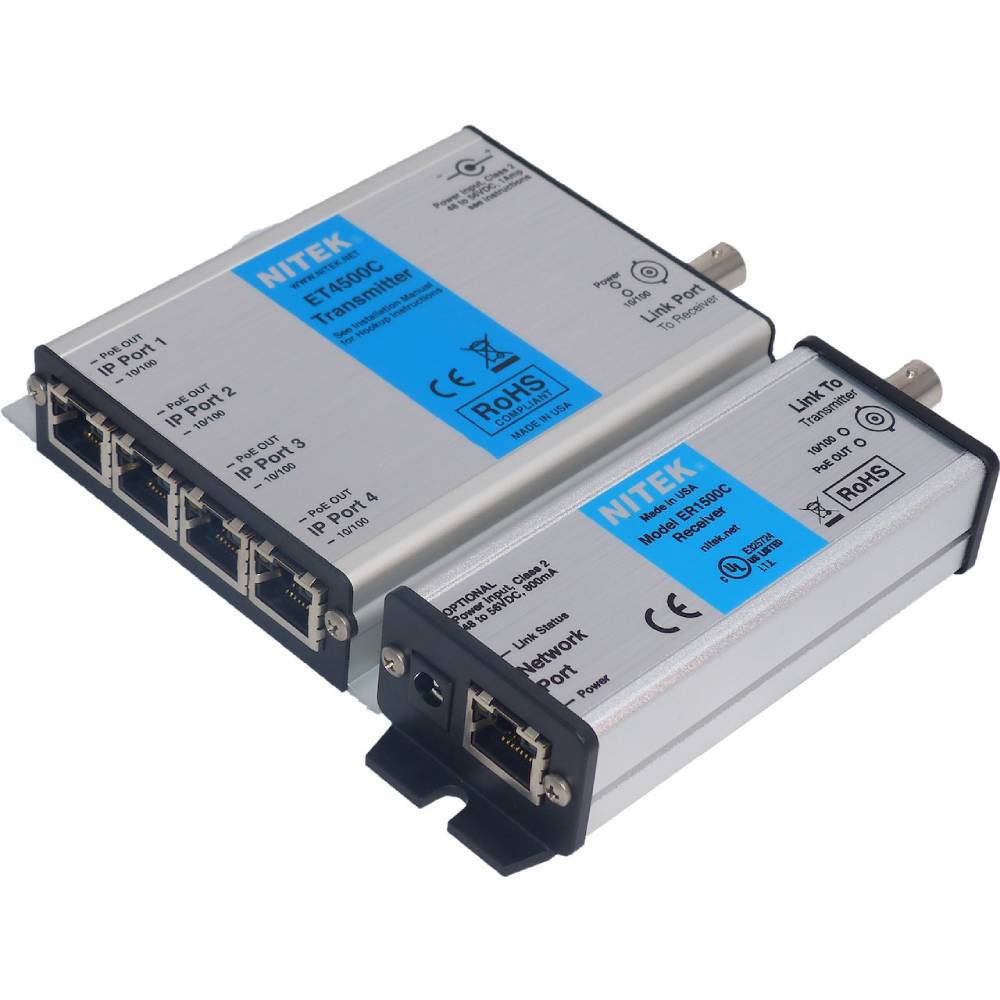

4 Channel IP over Coax. Set Includes: 4 Port ER4500C Transmitter, ER1500C Receiver, Weatherproof Case, & Surge Protection.

Overview

The EL4500C is an exciting addition to the EtherStretch product lineup. NITEK’s EL4500C is a great way to upgrade from existing analog cameras to IP, without rewiring. This environmentally hardened solution provides a powered 10/100 Ethernet link to distances of up to 500m over a single RG-59 or RG-6 coaxial cable. At the far end, the ET4500C provides 4 powered RJ45 ports, allowing for connection to multiple IP cameras or other remote devices over a single coax cable. Due to power loss in the cabling, and multiple powered transmitter ports, injection of power at the remote end is recommended using the included PS48 power supply.

The EL4500C provides a complete link consisting of a 4-port transmitter, a transmitter power supply, and a receiver unit. The receiver will negotiate with a PoE switch at the head end to power the link, or power can be injected at the head end using another optional PS48. The EL4500C is transparent to the network and requires no MAC addressing. LED indicators show the status of network communication and PoE power. Both transmitter and receiver are housed in industrial-grade anodized aluminum housings with mounting ears.

Features

Includes 4-Port Transmitter, Receiver, and Power Supply
Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
Supports any IP network device & 4K cameras
Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
Fully transparent to the network, no MAC or IP addressing required
LED indicators for power, network rate, link status and PoE output
The optional power supply can insert PoE power for non-PoE switches
Short circuit, over-current and over-voltage protection
Ground loop isolation
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured and supported in the U.S.A.

Technical Specs

Max Operating Distance (each device)

Link port: 500m
Network Port: 100m

Power

Requirements: 302.3at/af switch or optional PS48 power supply
Power Output: Meets IEEE802.3af/at
PoE Source: Local PSE or optional power supply

LED Connectivity Indicators

Indicators: for power, network rate, link status and PoE output

System Latency

System Latency: <1mS over 500m of RG-59

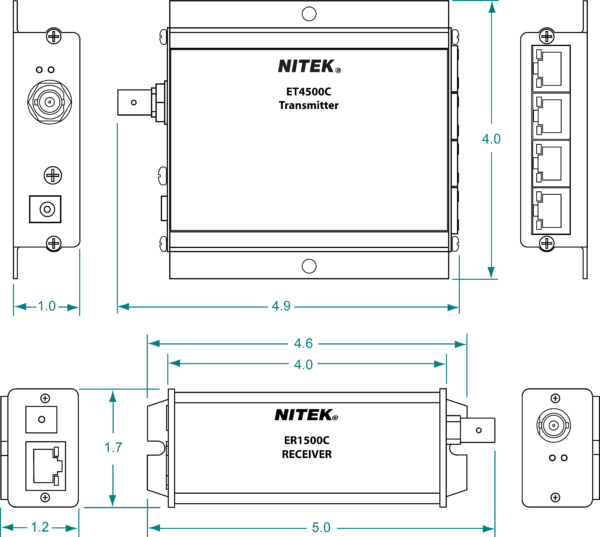

Mechanical Dimensions (L x W x H)

ER1500C: 127mm x 43mm x 28mm / 5.0″ x 1.7″ x 1.1″

ET4500C: 124mm x 102mm x 25mm / 4.9″ x 4.0″ x 1.0″

Shipping Dimensions (L x H x L)

Package: 254mm x 152mm x 76mm / 10″ x 6″ x 3″
Weight: 0.45kg / 4lbs

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing

Connectors

ER1500C: Network Port: 1 RJ45 Connector

Link Port: 1 BNC Coax Jack

ET4500C: Network Port: 4 RJ45 Connector
