Overview

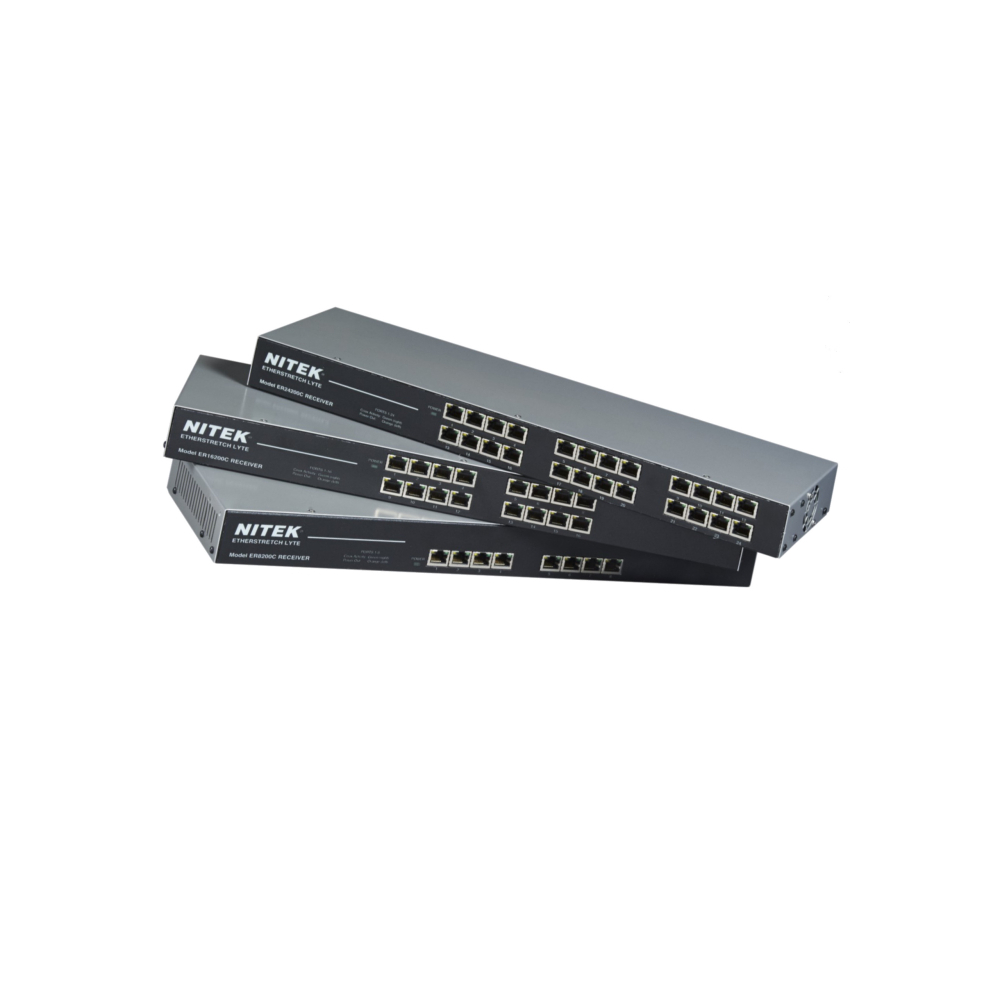

The ER24200C is the largest receiver in Nitek’s exciting EtherStretch Lyte family. The ER24200C is a 24-channel head end receiver, designed for Ethernet link extension over existing coaxial cabling. The ER24200C is similar to Nitek’s flagship ER16500C receiver in that it can extend 10/100 Ethernet to remote transmitters over up to 500m of RG58 or RG6 coaxial cabling. However, the ER24200C can be more cost-effective because it is designed to work with commercially available PoE Ethernet Switches and instead only contains a small 15V power supply, no internal web server, and no internal switch or aggregating LAN port.

The EtherStretch Lyte system is designed to allow the Ethernet PoE Switch to handshake with the remote PoE devices through the local ER24200C receiver channel, ET1243C transmitter, and intervening cabling. Once the PoE comes up, the ER24200C channel and far-end transmitter also power up and begin link operation. The 15V supply is available for channels to operate without PoE power, but remote devices will have to be powered at the far end.
