ET1500C

Categories: , Tags: ,

IP over Coax Transmitter. Use with ER8500C and ER16500C Receivers only.

Overview

The ET1500C is a transmitter that is used with NITEK EtherStretch receivers; allowing for the re-use of existing analog coaxial cable infrastructure to transmit and power IP cameras or other Ethernet devices. This environmentally hardened product is the far end device providing 10/100 Ethernet and Power Over Ethernet (PoE) at distances of up to 500m over RG-59 or RG-6 coaxial cabling. The ET1500C communicates with a NITEK receiver at the head end which has access to power and LAN.

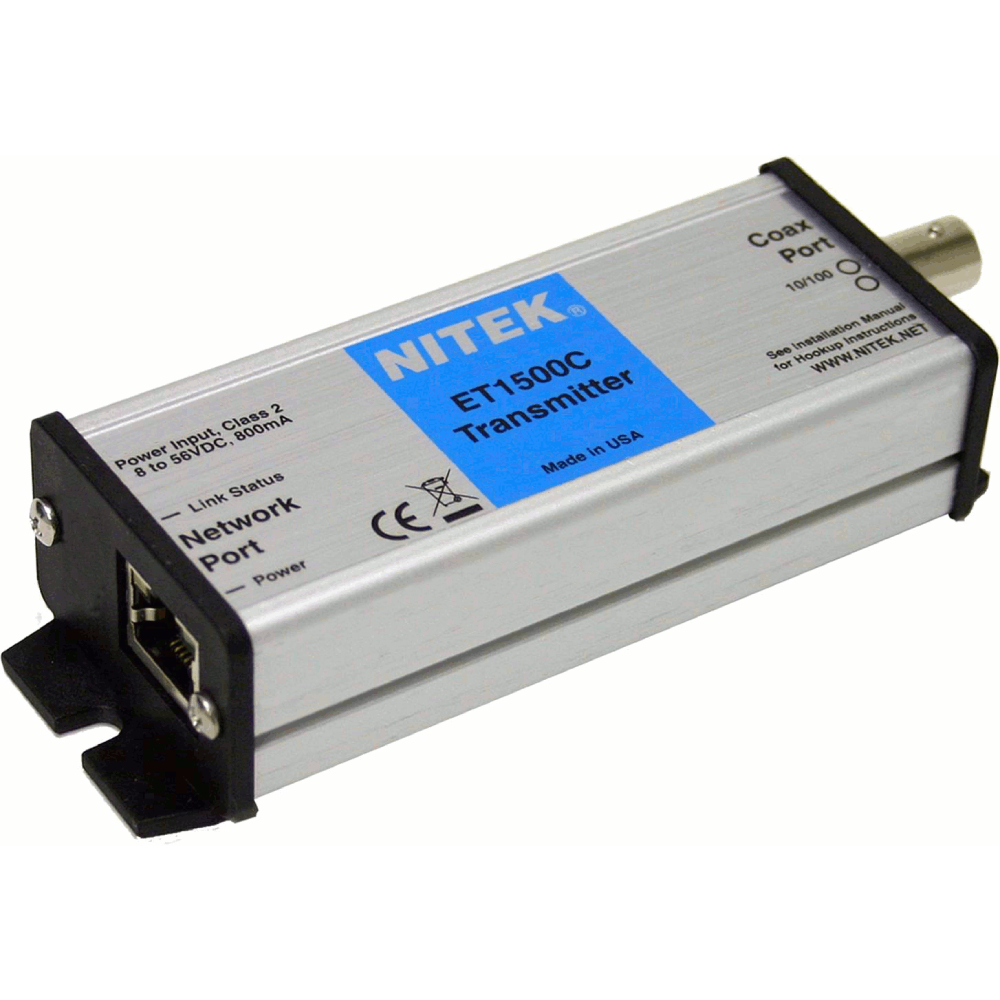

The ET1500C is housed in an industrial-grade anodized aluminum housing with mounting ears and has LEDs for link status and POE activity. The ET1500C has a power jack for connecting an optional PS48 power supply to re-inject power for full power PoE output at longer link distances.

Features

  • IP over Coax Transmitter with PoE
  • Works with ER1500C, ER8500C, and ER16500C receivers
  • Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
  • Supports any IP network device & 4K cameras
  • Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
  • Fully transparent to the network, no MAC or IP addressing required
  • LED indicators for power, network rate, link status, and PoE output
  • The optional power supply can insert PoE power for non-PoE switches
  • Short circuit, over current, and over-voltage protection
  • Ground loop isolation
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Network Port: 100m
  • Link Port: 500m
Power
  • Requirements: NITEK receiver / optional PS48 power supply
  • Power Output: Meets IEEE802.3af/at
  • PoE Source: Available coax power or optional power supply
LED Connectivity Indicators
  • Indicators: Network Signals, Link Status, and Power
System Latency
  • System Latency: <1mS over 500m RG-59

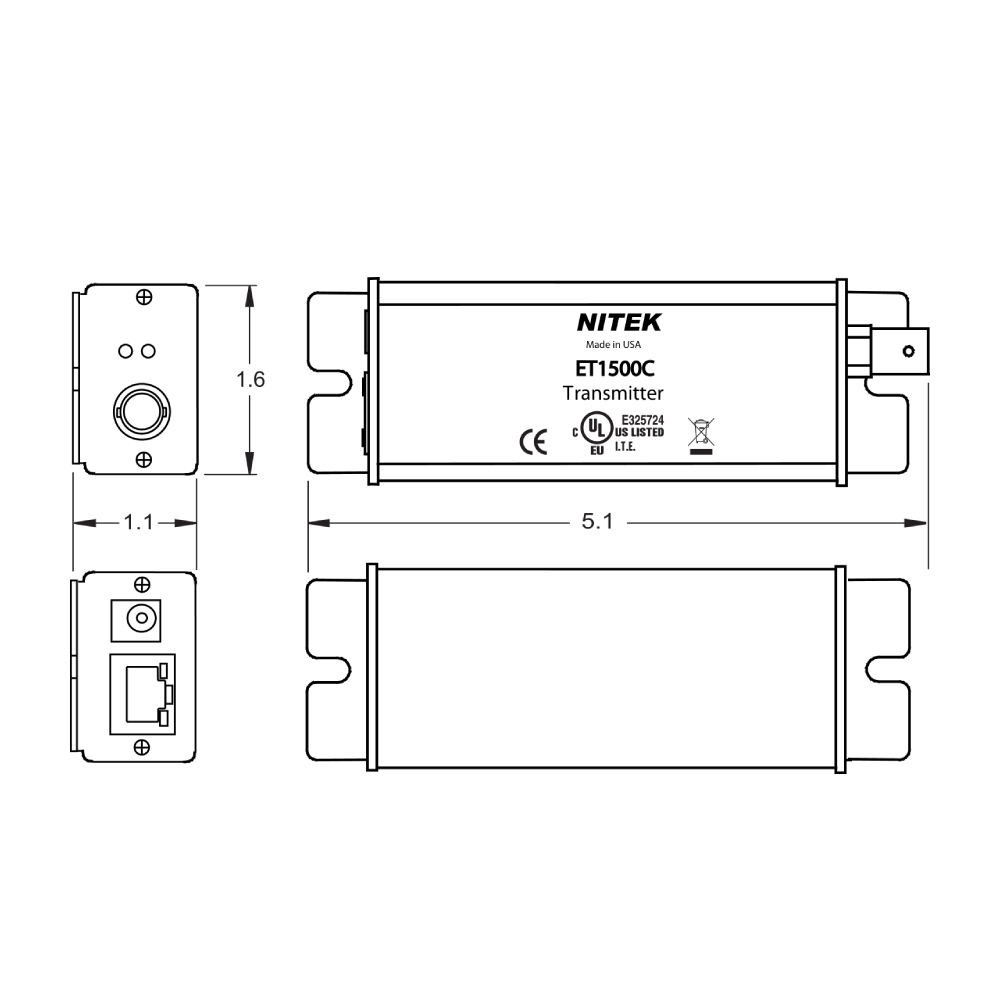

Mechanical Dimensions (L x W x H)
  • 109mm x 41mm x 28mm / 4.93″ x 1.6″ x 1.1″
  • Mounting: (2x) 8mm / 3/8″
Shipping Dimensions (L x W x H)
  • Package: 135mm x 195mm x 60mm / 5.3″ x 7.7″ x 2.3″
  • Weight: 0.45kg / 1lbs
Environmental / Temperature
  • Operating: -40°C to 75°C / -40°F to 167°F
  • Storage: -40°C to 75°C / -40°F to 167°F
  • Humidity: Up to 90% non-condensing
  • Mean Time Between Failure: >100,000 Hours
Connectors
  • Network Port: RJ45 Connector
  • Link Port: BNC Coax Jack
Rating / Listing

UL: IEC/UL 60950-1

    • NEMA TS-2: Temperature & Humidity NEMA 2.2.7
    • Mechanical Vibration NEMA 2.2.8
    • Mechanical Shock NEMA 2.2.9
    • Operating Voltage NEMA 2.1.2
    • Operating Frequency NEMA 2.1.8
    • Transient Test NEMA 2.1.6 thru 2.1.8

Warranty Information

Limited Lifetime Warranty

Product Data Sheet

ET1500C
