ET1500CW

SKU: P 661955150099 Categories: Coax, Etherstretch Tags: Single, Transmitter

Outdoor IP over Coax Transmitter. Includes: ET1543C Transmitter and Weatherproof Case. Use with ER1500C, ER8500C and ER16500C Receivers only.

Overview

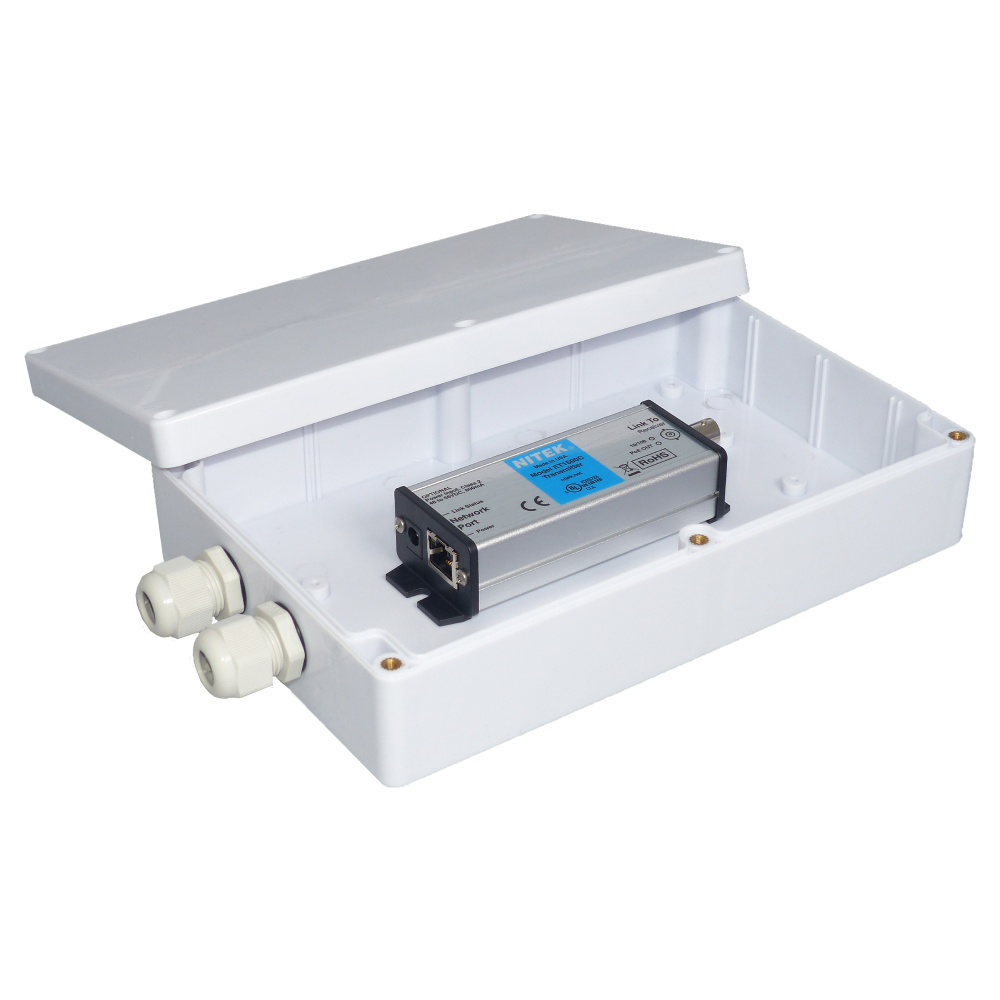

The ET1500CW consists of an ET1543C mounted into a WP1325 weatherproof enclosure. The ET1543C is a mini transmitter that is used with NITEK EtherStretch receivers; allowing for the re-use of existing analog coaxial cable infrastructure to transmit and power IP cameras or other Ethernet devices. This environmentally hardened product is the far end device providing 10/100 Ethernet and Power Over Ethernet (PoE) at distances of up to 500m over RG-59 or RG-6 coaxial cabling. The ET1543C communicates with a NITEK receiver at the head end which has access to power and LAN. The ET1543C has LEDs for link status and PoE activity.

The WP1325 enclosure (indicated by the “W” in the part number) is a polycarbonate high-impact NEMA 4X rated box equipped with neoprene gaskets to prevent the ingress of moisture and dust. The box comes with two bottom-side cable entries fitted with UL94V-2 rated nylon hex cable glands to maintain the weatherproof seal.

Features

Mini IP over Coax Transmitter in a weatherproof enclosure with glands
Requires ER1500C, ER8500C or ER16500C receiver for functionality
Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
Supports any IP network device & 4K cameras
Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
Fully transparent to the network, no MAC or IP addressing required
LED indicators for power, network rate, link status, and PoE output
Short circuit, over current, and over-voltage protection
Ground loop isolation
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance

Network Port: 100m
Link Port: 500m

Power

Requirements: NITEK receiver
Output: Meets IEEE802.3af/at
PoE Source: Available coax power

LED Connectivity Indicators

Indicators: for power, network rate, link status, and PoE output

System Latency

System Latency: <1mS over 500m RG-59

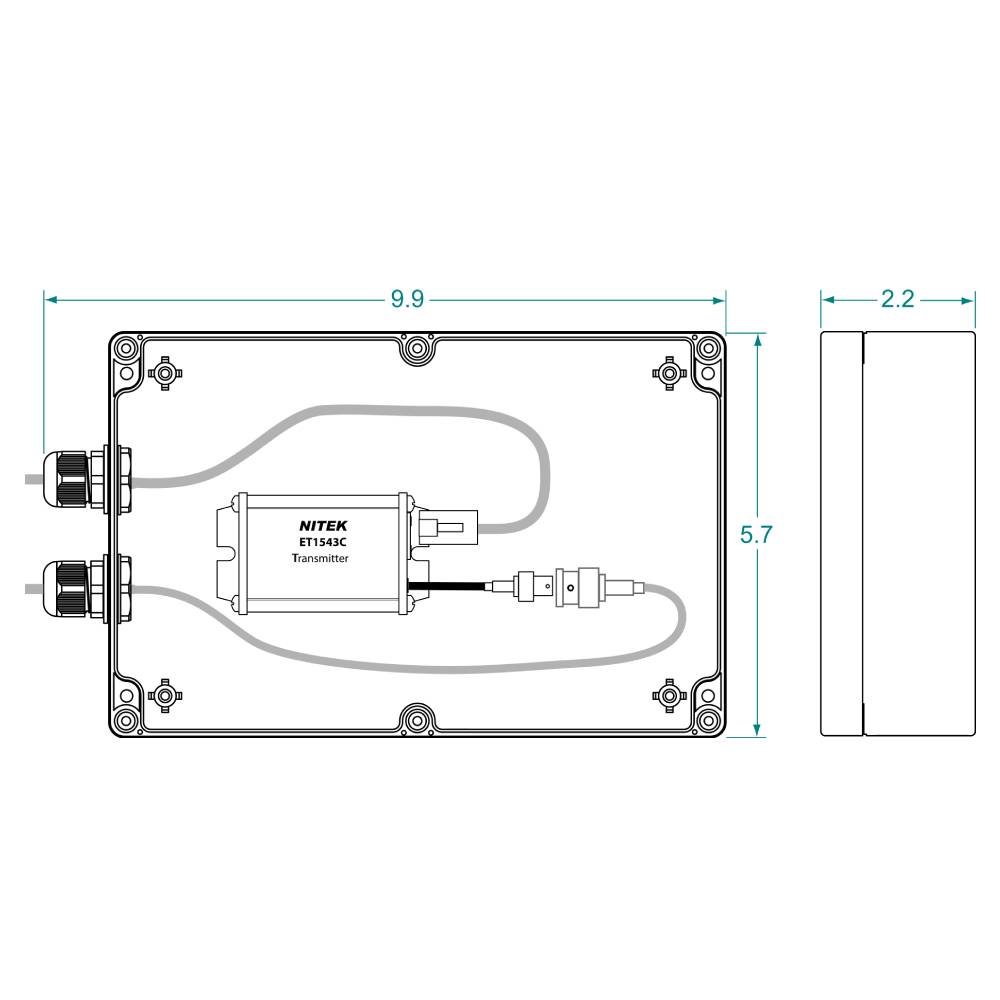

Mechanical Dimensions (L x W x H)

ET1543C: 76mm (178mm) x 43mm x 30mm / 3.0″ (7″) x 1.7″ x 1.2″
WP1325: 53mm x 252mm x 146mm / 2.1″ x 9.9″ x 5.7″

Shipping Dimensions (L x W x H)

Package: 254mm x 178mm x 102mm / 10″ x 7″ x 4″
Weight: 0.90kg / 2lbs

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing
Mean Time Between Failure: >100,000 Hours

Connectors

Network Port: RJ45 Connector
Link Port: BNC Coax Jack

Rating / Listing

UL: IEC / UL 60950-1

NEMA TS-2: Temperature & Humidity NEMA 2.2.7

- Mechanical Vibration NEMA 2.2.8
- Mechanical Shock NEMA 2.2.9
- Operating Voltage NEMA 2.1.2
- Operating Frequency NEMA 2.1.8
- Transient Test NEMA 2.1.6 thru 2.1.8

Warranty Information

Limited Lifetime Warranty
