ET1500CWS

SKU: P 661955150136 Categories: Coax, Etherstretch Tags: Single, Transmitter

Outdoor IP over Coax Transmitter. Includes: ET1543 Transmitter, Weatherproof Case, and Surge Protector. Use with ER1500C, ER8500C and ER16500C Receivers only.

Overview

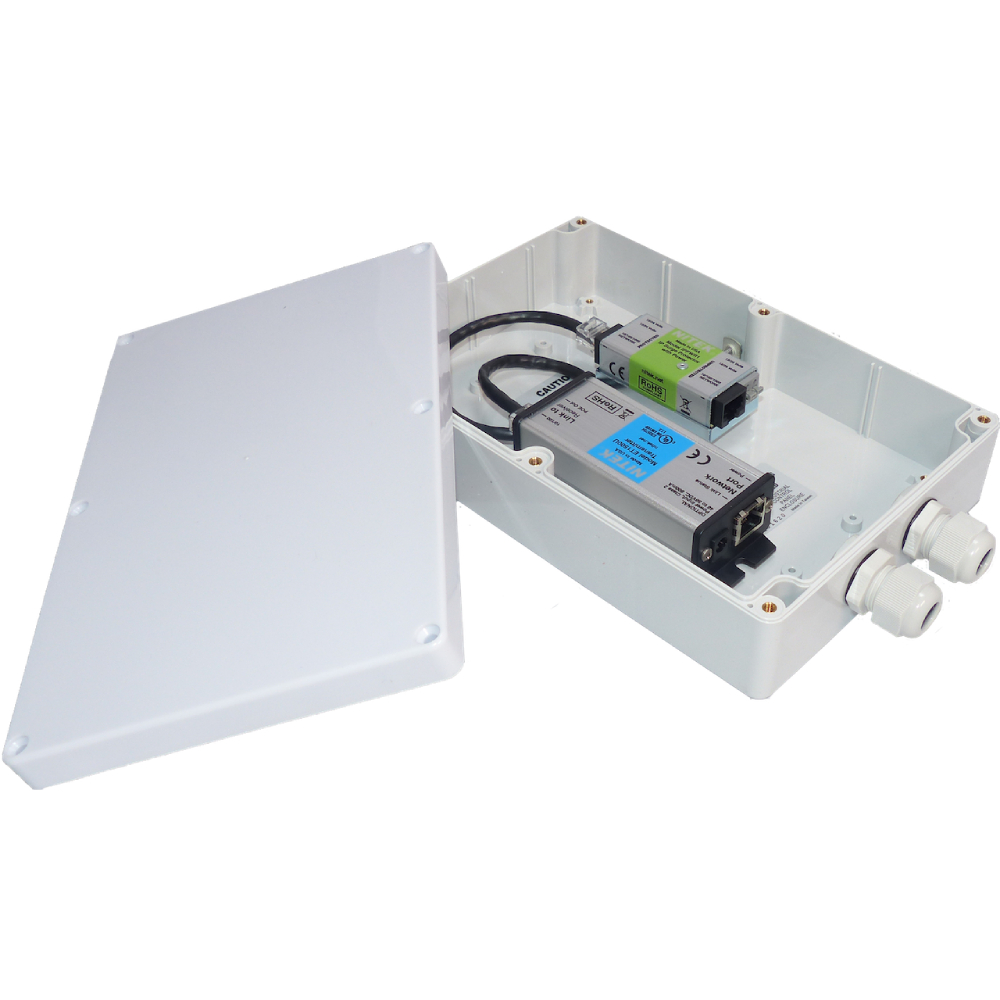

The ET1500CWS is part of the EtherStretch solution for outdoor applications. The ET1500CWS consists of an ET1543C and IPCOAX1 surge protector mounted into a WP1325 weatherproof enclosure. The ET1500CWS is a solution for PoE power and 10/100 link extension up to 500m on RG-59 or RG-6 coaxial cabling.

The WP1325 enclosure (indicated by the “W” in the part number) is a polycarbonate high-impact NEMA 4X rated box equipped with neoprene gaskets to prevent the ingress of moisture and dust. The box comes with two cable entries fitted with UL94V-2 rated nylon hex cable glands to maintain the weatherproof seal. The IPCOAX1 is a single channel, in-line 10/100 Ethernet-over-Coax surge protector. It also provides independent protection for 12/24V power, which can be used for heaters, blowers, or PTZ. The IPCOAX1 has a heavy-duty single ground connection integrated into the WP1325.

Features

Transmitter and surge protector in a weatherproof enclosure with glands
Use with ER1500C, ER8500C or ER16500C receiver
Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
Supports any IP network device & 4K cameras
Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
Fully transparent to the network, no MAC or IP addressing required
LED indicators for power, network rate, link status and PoE output
Short circuit, over-current and over-voltage protection
Ground loop isolation
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured and supported in the U.S.A.

Technical Specs

Max Operating Distance

Network Port: 100m
Link Port: 500m

Power

Requirements: NITEK receiver
Output: Meets IEEE802.3af/at
PoE Source: Available coax power

LED Connectivity Indicators

Indicators: Network Signals, Link Status, and Power

System Latency

System Latency: <1mS over 500m of RG-59

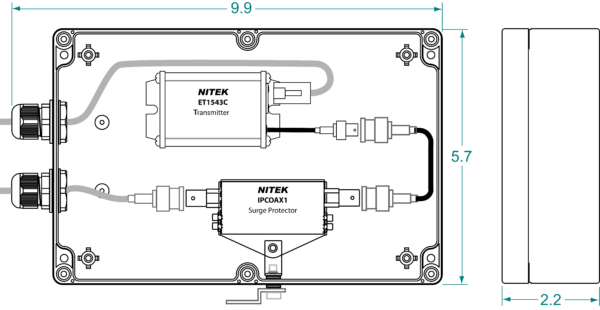

Mechanical Dimensions (L x W x H)

ET1543C: 76mm (178mm) x 43mm x 30mm / 3.0″ (7″) x 1.7″ x 1.2″
IPCOAX1: 46mm x 64mm x 33mm / 1.8″ x 2.5″ x 0.9″
WP1325: 53mm x 252mm x 146mm / 2.1″ x 9.9″ x 5.7″

Shipping Dimensions (L x W x H)

Package: 254mm x 178mm x 102mm / 10″ x 7″ x 4″
Weight: 0.90kg / 2lbs

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing
Mean Time Between Failure: >100,000 Hours

Connectors

Network Port: RJ45 Connector
Link Port: BNC Coax Jack

Rating / Listing

UL: IEC / UL 60950-1

NEMA TS-2: Temperature & Humidity NEMA 2.2.7

- Mechanical Vibration NEMA 2.2.8
- Mechanical Shock NEMA 2.2.9
- Operating Voltage NEMA 2.1.2
- Operating Frequency NEMA 2.1.8
- Transient Test NEMA 2.1.6 thru 2.1.8

Warranty Information

Limited Lifetime Warranty
