ET1500UW

SKU: P 661955150105 Categories: , Tags: ,

Outdoor IP over UTP Transmitter. Includes:ET1500U Transmitter & Weatherproof Case. Use with ER1500U, R16500U Receivers only.

Overview

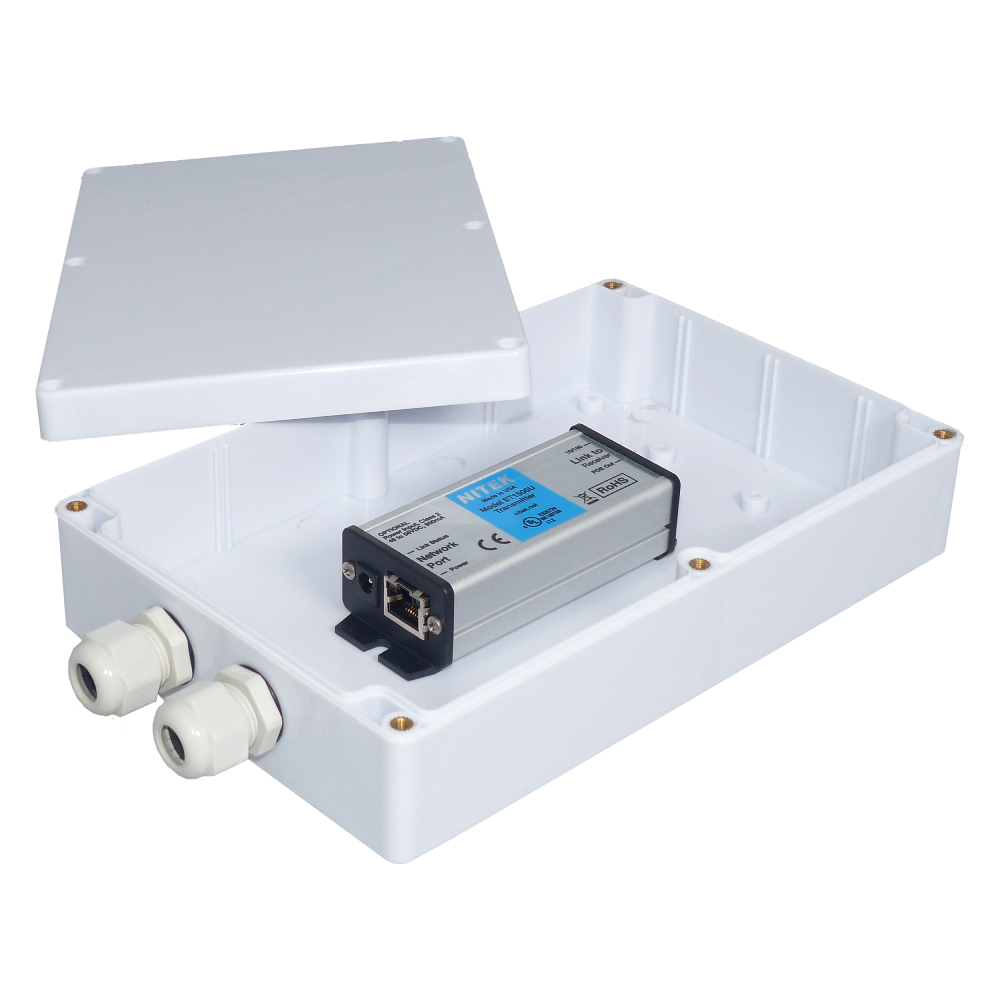

The ET1500UW is part of the EtherStretch solution for outdoor applications. The ET1500UW consists of an ET1500U mounted in a WP1325 enclosure. The ET1500UW is the weatherproof camera-side solution for PoE power and 10/100 link extension over up to 600m of Cat5e (or better) cabling.

The WP1325 enclosure (indicated by the “W” in the part number) is a polycarbonate high-impact NEMA 4X rated box equipped with neoprene gaskets to prevent the ingress of moisture and dust. The box comes with two bottom-side cable entries fitted with UL94V-2 rated nylon hex cable glands to maintain the weatherproof seal.

Features

  • Media Converter Receiver
  • Can be used in combination with ER1500U, ER8500U, and ER16500U
  • IP over 4 pair UTP wire
  • Extends up to 600 meters with POE
  • Supports any IP network device & 4K cameras
  • Supports 10/100 and POE over UTP (CAT5e / CAT6) cables, Full Duplex
  • Fully transparent to the network. No MAC or IP addressing required
  • LED indicators for network signals, link status, and power
  • The optional power supply can insert POE power at the end device
  • Short circuit, over-current, and over-voltage protection
  • Ground loop isolation
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Network Port: 100m
  • Link Port: 600 meters
LED Connectivity Indicators
  • Indicators: Network Signals, Link Status and Power
Rating / Listing
UL: IEC/UL 60950-1
NEMA TS-2: Temperature & Humidity NEMA 2.2.7
  • Mechanical Vibration NEMA 2.2.8
  • Mechanical Shock NEMA 2.1.2
  • Operating Frequency NEMA 2.1.3
  • Transient Test NEMA 2.1.6 thru 2.1.8
Mechanical Dimensions (L x W x H)
  • ET1500UW: 40mm x 117mm x 28mm / 1.6″ x 4.6″ x 1.1″
  • Mounting: (2x) 8mm / 3/8″
Shipping Dimensions (Lx W x H)
  • package: 135mm x 195mm x 60mm /5.3″ x 7.7″ x 2.3″
  • Weight: 0.3kg / 0.7lbs
Power
  • Requirements: 302.3af/at the switch or optional power supply
  • Power Output: W/ IEEE802.3af & IEEE802.3at standards
  • POE Capabilities: POE Passthrough or optional power supply
System Latency
  • System Latency: <1mS over 600ft CAT5e
Environmental / Temperature
  • Operating: -40°C to 75°C / -40°F to 167°F
  • Storage: -40°C to 75°C / -40°F to 167°F
  • Humidity: Up to 90% non-condensing
  • Mean Time Between Failure: >100,000 Hours
Connectors
  • Network Port: RJ45 Connector
  • Link Port: RJ45 Connectors

Warranty Information

Limited Lifetime Warranty
