Overview

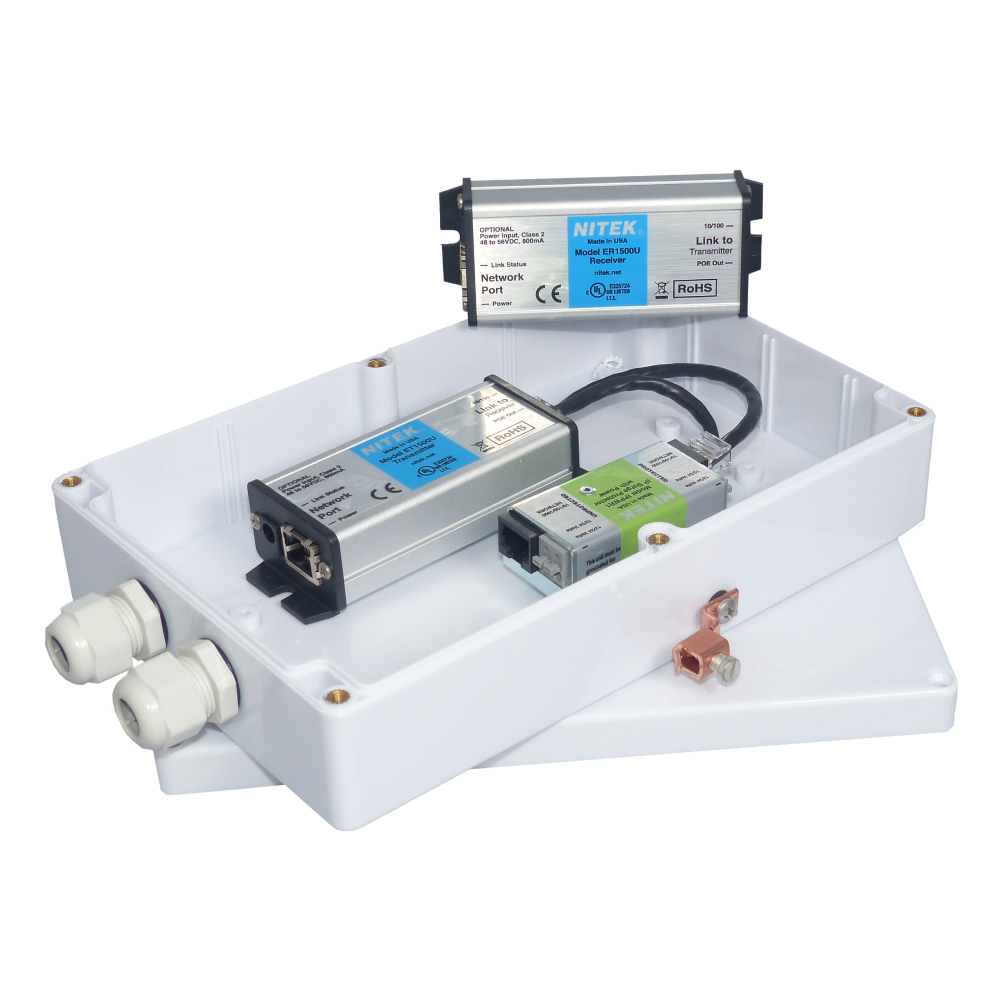

The EL1500UWS is part of the EtherStretch solution for outdoor applications. The EL1500UWS consists of an ET1500U mounted into a WP1325 weatherproof enclosure along with an aIPPWR1 surge protector for the camera side (indicated by the “S” in the part number), and an ER1500U for the head end of the link. The EL1500UWS is the complete solution for camera surge, PoE power, and 10/100 link extension over up to 600m of Cat5e (or better) cabling. The ER1500U sources power to the link by requesting power from a PoE switch, or up to 30W power can be injected from an optional PS48 power supply.

The WP1325 enclosure (indicated by the “W” in the part number) is a polycarbonate high-impact NEMA 4X rated box equipped with neoprene gaskets, to prevent the ingress of moisture and dust. The box comes with two bottom-side cable entries fitted with UL94V-2 rated nylon hex cable glands to maintain the weatherproof seal. The IPPWR1 is a single channel, in-line 10/100/100 Ethernet surge protector for IP cameras. It also provides independent protection for 12/24V power, which can be used for heaters, blowers, or PTZ. The IPPWR1 has standard RJ45 jacks for easy connection, and a heavy-duty single ground connection integrated into the WP1325.
