ET1543C

SKU: P 661955154318 Categories: Coax, Etherstretch Tags: Single, Transmitter

Mini IP over Coax Transmitter. Use with ER8500C and ER16500C Receivers only.

Overview

The ET1543C is a mini transmitter that is used with NITEK EtherStretch receivers; allowing for the re-use of existing analog coaxial cable infrastructure to transmit and power IP cameras or other Ethernet devices. This environmentally hardened product is the far end device providing 10/100 Ethernet and Power Over Ethernet (PoE) at distances of up to 500m over RG-59 or RG-6 coaxial cabling. The ET1543C communicates with a NITEK receiver at the head end which has access to power and LAN.

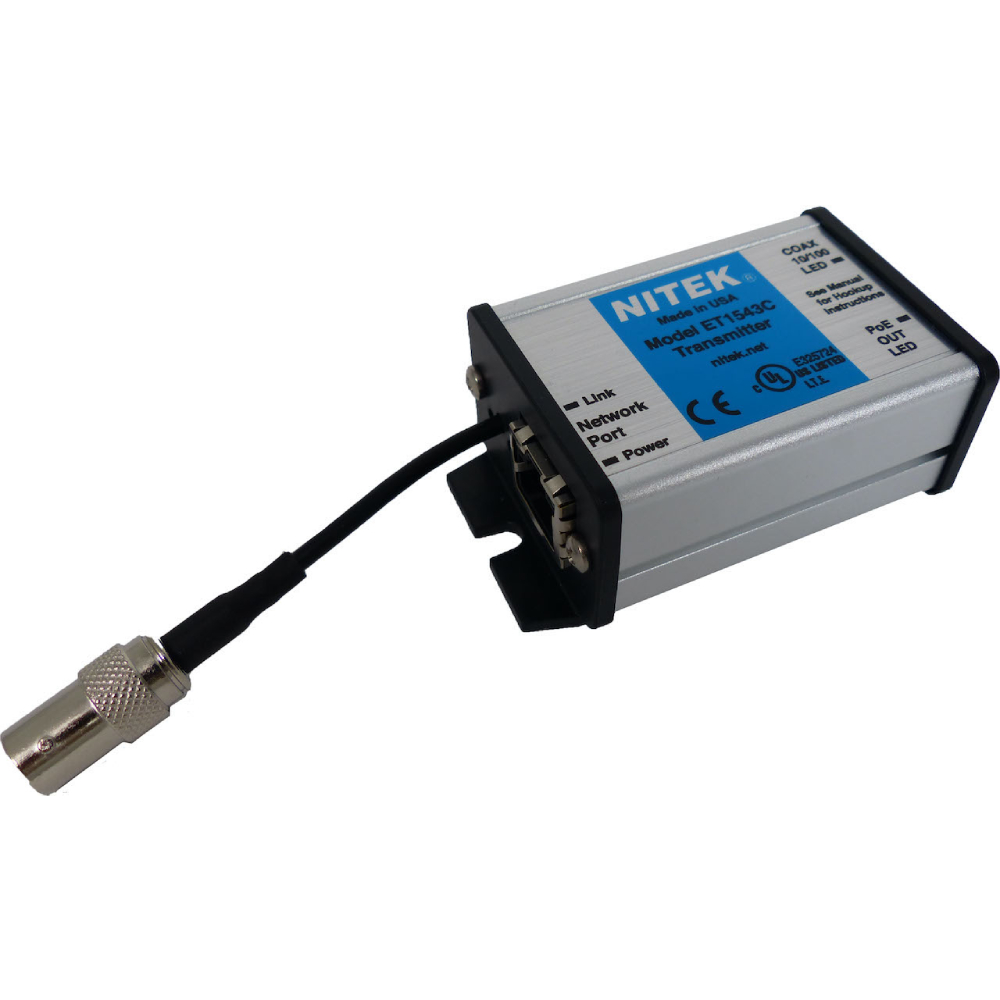

The ET1543C is housed in a mini industrial-grade anodized aluminum housing with mounting ears. The mini enclosure and flexible BNC cable allow for installation into tight spaces. The ET1543C has LEDs for link status and PoE activity.

Features

Mini IP over Coax Transmitter
Small enough to fit into tight spaces
Requires ER1500C, ER8500C or ER16500C receivers for functionality
Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
Supports any IP network device & 4K cameras
Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
Fully transparent to the network, no MAC or IP addressing required
LED indicators for power, network rate, link status, and PoE output
Short circuit, over current, and over-voltage protection
Ground loop isolation
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance

Network Port: 100m
Link Port: 500m

Power

Requirements: NITEK receiver
Power Output: Meets IEEE802.3af/at
PoE Source: Available coax power

LED Connectivity Indicators

Indicators: for power, network rate, link status and PoE output

System Latency

System Latency: <1mS over 500m RG-59

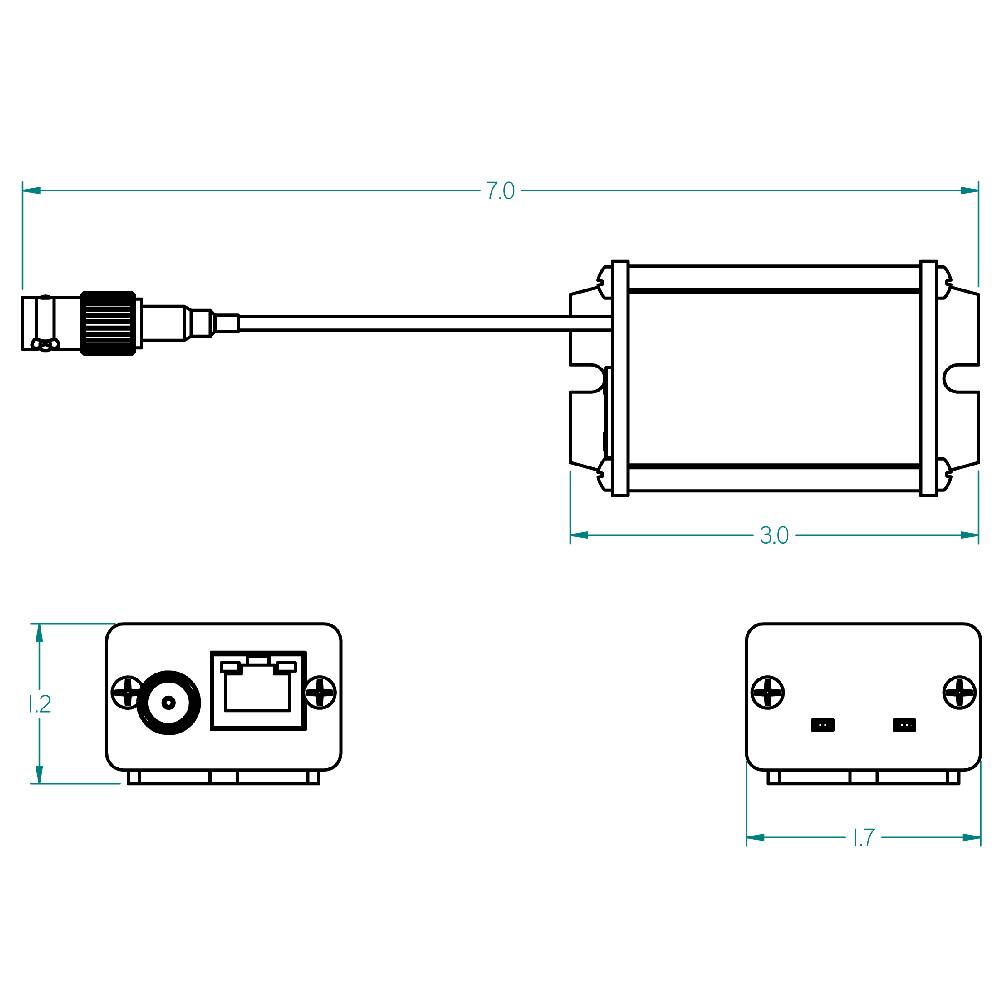

Mechanical Dimensions (L x W x H)

76mm (178mm) x 43mm x 30mm / 3.0″ (7″) x 1.7″ x 1.2″
Mounting: (2x) 8mm / 3/8″

Shipping Dimensions (L x W x H)

Package: 127mm x 52mm x 127mm / 7.5″ x 2″ x 5″
Weight: 0.45kg / 1lbs

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing
Mean Time Between Failure: >100,000 Hours

Connectors

Network Port: RJ45 Connector
Link Port: BNC Coax Jack on mini cable

Rating / Listing

UL: IEC / UL 60950-1

NEMA TS-2: Temperature & Humidity NEMA 2.2.7

- Mechanical Vibration NEMA 2.2.8
- Mechanical Shock NEMA 2.2.9
- Operating Voltage NEMA 2.1.2
- Operating Frequency NEMA 2.1.8
- Transient Test NEMA 2.1.6 thru 2.1.8

Warranty Information

Limited Lifetime Warranty
