ET1551UW

SKU: P 661955155155 Categories: , Tags: ,

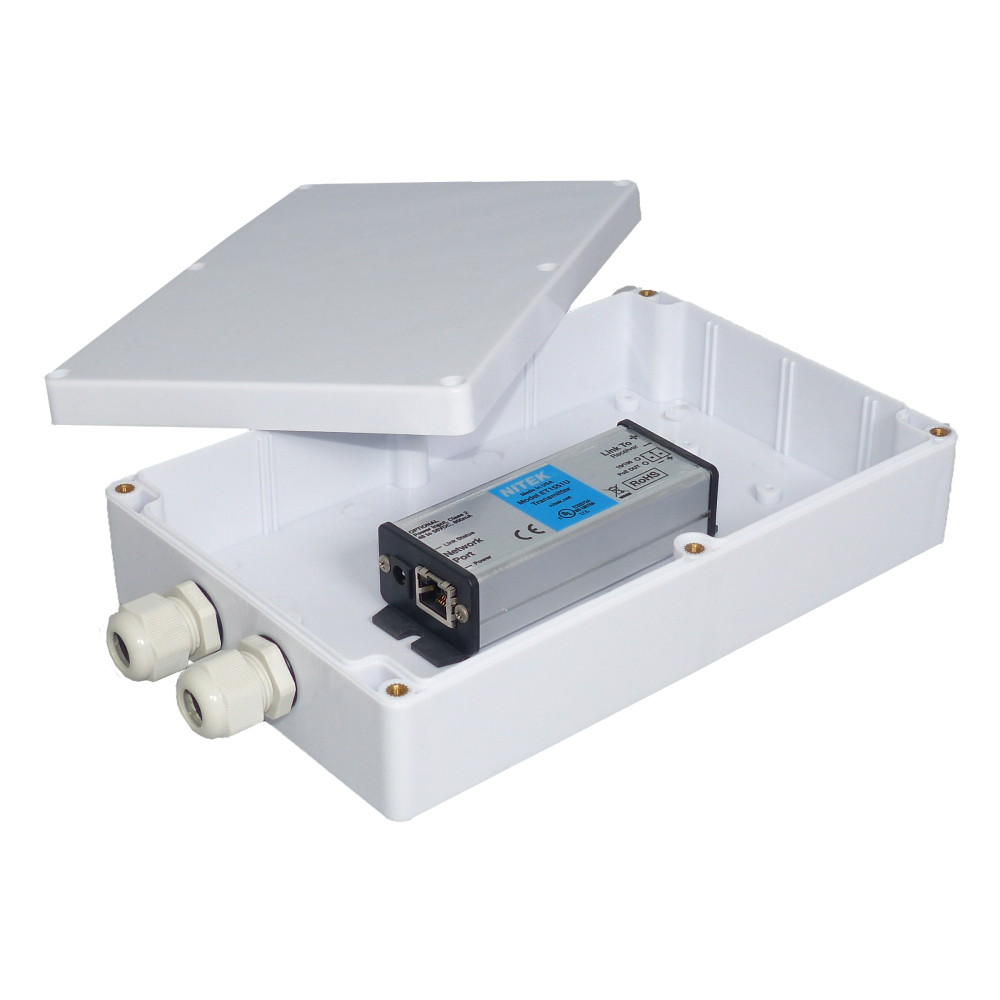

Outdoor IP over 2Wire UTP Transmitter. Includes: Transmitter and Weatherproof Case. Use with ER1551U, ER1551UM, ER1551UM, and ER1651U Receivers only.

Overview

The ET1551UW is the transmitter side device of an EtherStretch link extender, provided in a weatherproof enclosure.  This environmentally hardened device allows for the creation of a 10/100 Ethernet link over ONE pair Cat3 (or better cabling) for distances up to 300m.  Multiple links can share individual pairs in Cat5/6 or similar cabling.  Shielded and non-twisted cabling will have reduced distances.  Larger gauge conductors will improve power transfer.  The ET1551UW will communicate back to an ER1551U single channel or ER1651U multi-channel receiver at the head end which provides power and network connection. LEDs indicate link speed and status.

Features

  • Remotely powers network devices and transmits IP data network category cables up to 600 meters/1968 feet
  • Rack-mounted multi-channel (16) EtherStretch solution
  • Includes a built-in power source for all connected devices
  • Gigabit output network connectivity
  • Supports 10/100 and POE over UTP (CAT4e / CAT6) cables
  • Supports mega-pixel technology
  • SFP ports support fiber interfacing
  • Supports any network device, including IP cameras
  • NEXTT provides remote monitoring
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Network Port: 100m
  • Link Port: 300m
System Latency
  • System Latency: <1mS over 600ft CAT5e
Rating / Listing
  • UL: IEC/UL 60950-1
  • NEMA TS-2: Temperature & Humidity NEMA 2.2.7
  • Mechanical Vibration NEMA 2.2.8
  • Mechanical Shock NEMA 2.2.9
  • Operating Voltage NEMA 2.1.2
  • Operating Frequency NEMA 2.1.8
  • Transient Test NEMA 2.1.6 thru 2.1.8
Data
  • Ethernet: Auto Configuring 10/100 Full Duplex
LED Connectivity Indicators
  • Indicators: Link Status, Power, POE Out, 10Mb or 1000Mb
Connectors
  • Network Port: 1 RJ45 Connector, 1 Gigabit
  • Link Port: Twisted Pair Wire
  • UTP Cable Specifications
  • DC Loop Resistance: 51 Ohms/1000 feet (max) (51 Ohms/304m)
  • Normal Capacitance: 17pF/ft.
  • Impedance: 100 Ohms +/-20%
  • UTP Category: 2 or better
Environmental / Temperature
  • Operating: -40°C to 75°C / -40°F to 167°F
  • Storage: -40°C to 75°C / -40°F to 167°F
  • Humidity: Up to 95% non-condensing
  • Mean Time Between Failure: >100,000 Hours
Mechanical Dimensions (W x H x L)
  • ET1551U: 34mm x 35mm x 40mm / 1.1″ x 1.6″ x 4.6″
  • WP1325: 252mm x 146mm x 53mm / 9.9″ x 5.7″ x 2.1″
Shipping Dimensions (W x H x L)
  • Pacakge:
  • Weight:

Warranty Information

Limited Lifetime Warranty
