IPCOAX1 – Nitek International

Overview

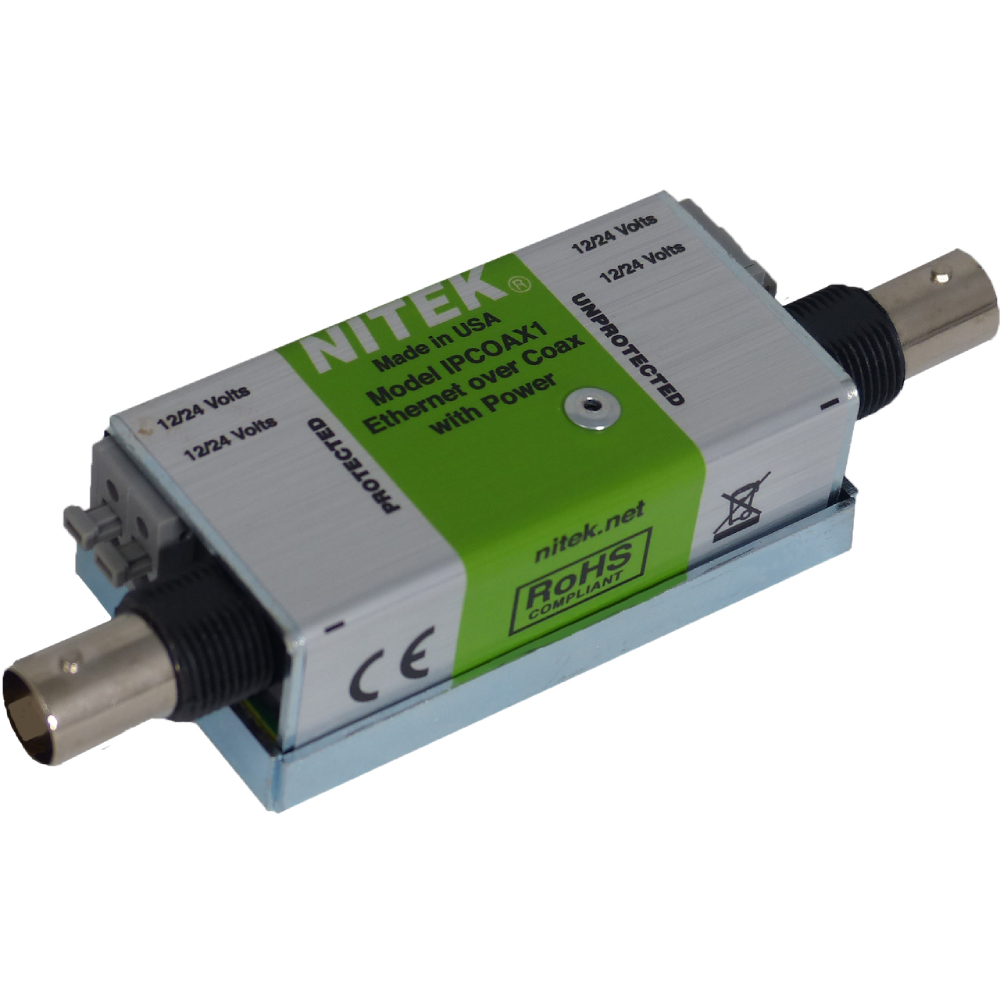

The IPCOAX1 is a single channel, in-line, Ethernet over Coax surge protector for IP cameras. In addition, it provides protection for 12-24VAC/VDC power, which can be used for heaters, blowers, or PTZ. The unit has standard female BNC connectors for connection to coaxial cables and is ideal for smaller restricted spaces. The IPCOAX1 provides a heavy-duty, single-point ground connection and is easy to install. It is an excellent surge protector for outdoor EtherStretch runs over coax. Outdoor runs should have a surge protector on each end.

Features

Heavy-duty single point ground
1 pico-Second clamping time
Two-stage Surge Arresting
Separate power protection for 12-24VAC/VDC
Rated for PoE+ power
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured and supported in the U.S.A.

Technical Specs

Connection

Ethernet over Coax (EtherStretch): Standard Female BNCs
Power In/Protected: Push-in Terminals

Clamping Voltage

Common Mode (L-G) All: 65-75V
Differential Mode (L-L) Coax: 65-75V

Max Current

Max Continuous Current each conductor: 1.5A
Max CM Surge Current per Conductor: 10kA

Environmental

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing
Max Humidity: 95% non-condensing

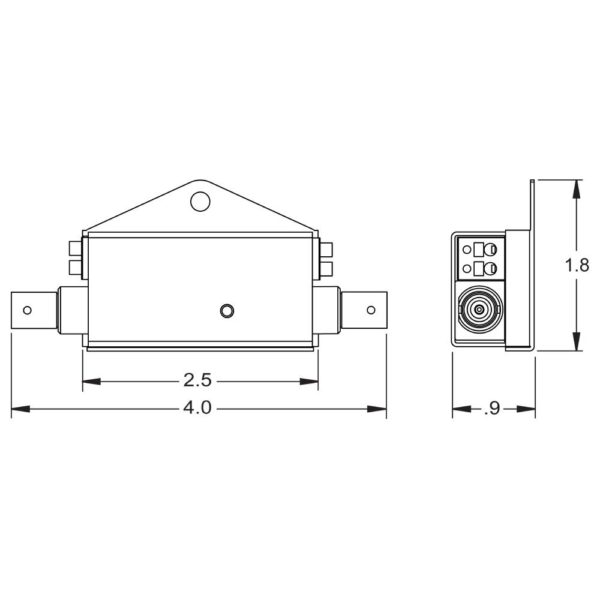

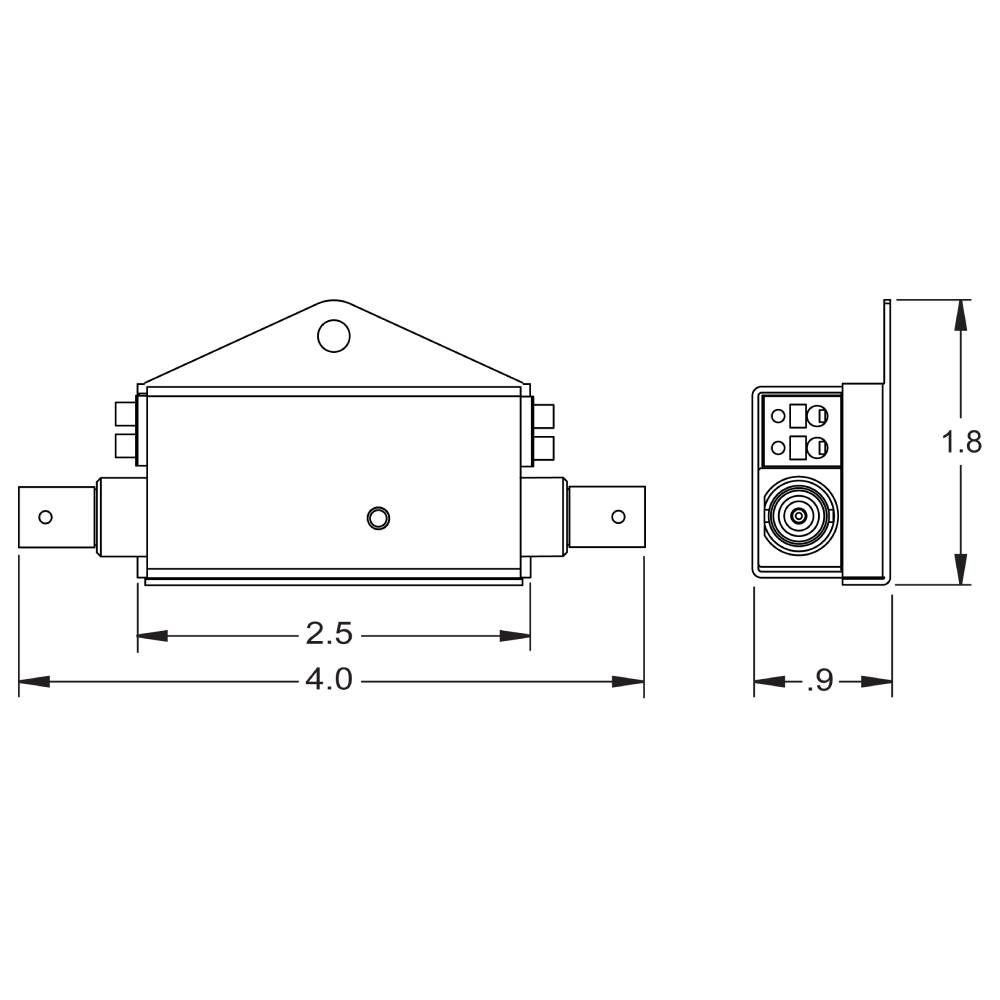

Mechanical Dimensions (L x W x H)

102mm x 46mm x 33mm / 4.0″ x 1.8″ x 0.9″

Shipping Dimensions (L x W x H)

Package:
Weight: 0.45kg / 1lb

Warranty Information

Limited Lifetime Warranty
