IPMRJ1

SKU: P 661955000189 Categories: , Tags: ,

IP Surge Protector – 10/100/Gigabit W/POE+

Overview

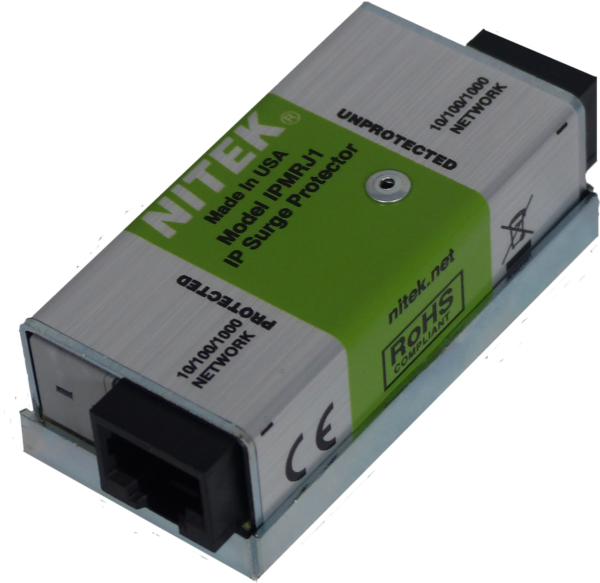

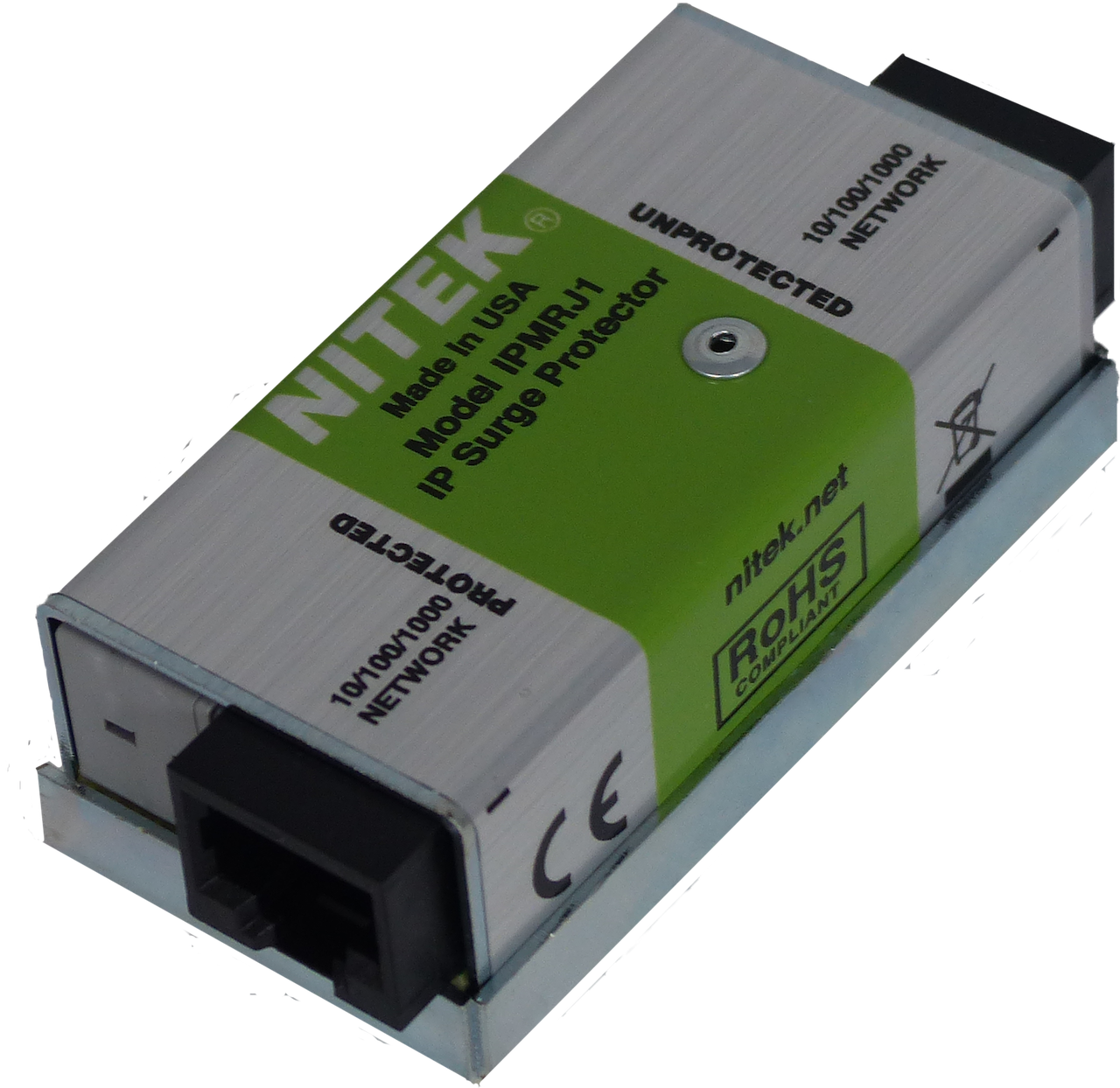

The IPMRJ1 is a single channel, in-line, 10/100/1000 Ethernet surge protector for IP cameras. The IPMRJ1 is designed to provide surge protection for one 10/100/1000 Ethernet port. The unit has standard RJ45 jacks for easy connection and is ideal for small or restricted spaces. The IPMRJ1 provides a heavy-duty, single-point ground connection and is easy to install in minutes.

Features

  • Heavy-duty single point ground
  • 1 picosecond clamping time
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Clamping
  • Data / POE+ Ethernet 58Vp-p
Connection Mode
  • RJ45
  • Transient Response Time
  • 1 Picosecond typ
  • Peak Pulse Power Dissipation
  • 3,00 w/pair (10/100us)
Impedance
  • 50 or 75 Ohms
Environmental / Temperature
  • Operating: -40°C to 75°C / -40°F to 167°F
  • Storage: -40°C to 75°C / -40°F to 167°F
  • Humidity: Up to 90% non-condensing
  • Relative Humidity: 0% to 95% non-condensing
Mechanical Dimensions (L x W x H)
  • 1.8″ x 2.5″ x 0.9″
Shipping Dimensions (L x W x H)
  • Package:
  • Weight: 0.45kg / 1lb

Warranty Information

Limited Lifetime Warranty
