IPPWR16 – Nitek International

Overview

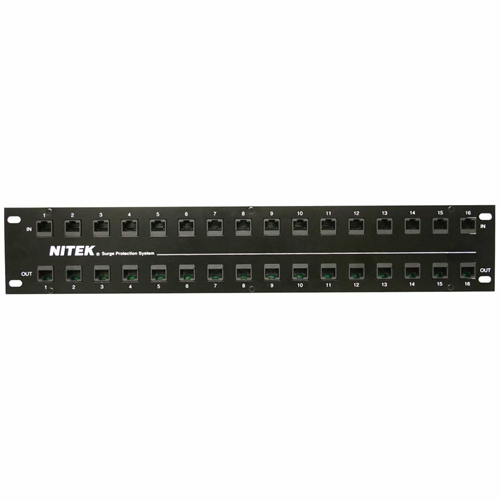

The IPPWR16 is designed to provide 16 channels of surge protection for network devices. It can with POE+ and non-POE devices. The IPPWR16 is cost-effective and ideally suited for protecting multi-input devices such as a network switch, NVR, or groups of IP cameras or servers. The IPPWR16 is rack-mountable in a standard 19″ rack. It installs in minutes and provides a single easy access point for grounding.

Features

Provides 16 channels of surge protection
Works with POE+ and non-POE 10/100/1000 equipment
Gigabit POE+ power
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Power

IEC380 connector- 110-240VAC/50-60HZ/640Watt Max
LED Connectivity Indicators: Link Status rack mounting

Mounting

Standard rack mounting

Connection Mode

SFP Port: 2 SFP ports for 1 Gigabit each
Link Port: 16 RJ45 Connectors

System Latency

<1mS over 1,000ft CAT5e

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing
Relative Humidity: 0% to 95% noncondensing

Mechanical Dimensions (L x W x H)

1 ru x 304mm D /12.0″ D

Shipping Dimensions (L x W x H)

Package: 8.5″ x 18″ x 24″
Weight: 5.44kg / 12lbs

Warranty Information

Limited Lifetime Warranty
