ML4001

Categories: , Tags: ,

Gigabit Fiber Media Converter, 100BaseTX to 1000BaseFX, One (1) SFP Ports, One (1) Network Port, One (1) Network Port. Requires Rk5000.

Overview

NITEK’s fiber optic Media Converters line allows the customer to extend 10/100 or Gigabit Ethernet communications well beyond the reach of copper solutions. NITEK offers versions of Media converters that work over pairs of singlemode fiber or multi-mode fiber, and variants that will communicate over a single optical fiber. Max link distances range from 2 to 20km, and beyond. NITEK’s media converters also offer a range of configurations: stand-alone or rack-mount, and voltage options such as low voltage (5V, 6V-15V), industrial voltages (12-30VAC, 12-57VDC), and POE (48-57V). The POE models will output power on the network port to power remote cameras or devices.

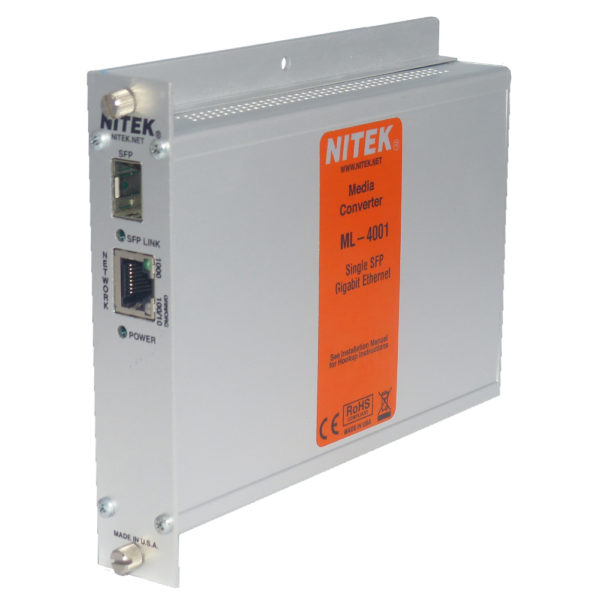

The ML4001 is a rack-mountable media converter solution for extending 10/100/1000 (Gigabit) Ethernet. The ML4001 offers an industry-standard SFP port, allowing the user to adapt to virtually any type of fiber or link distance.

Features

  • Rack/wall mountable
  • Accepts Industry Standards SFPs
  • 10/100/1000 capable
  • Compliant with IEEE802.3 standards
  • Autosensing MDI/MDIX crossover on network ports
  • Acts as a dual media converter or 4 port switch
  • Optional multicast flow control
  • LED indicators for network signals, link status, and power
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Electrical: Up to 100 meters on Network Port 10/100/1000 copper)
  • Optical: User-selectable SFP (not included), allows the user to adapt to virtually any type of fiber and link distance
Power
  • Requirements: 9-15VDC / 9-12VAC (12VDC recommended) 250mA Max
  • LED Connectivity Indicators
  • Indication: Green Flashing LEDs for 10/100BASE electrical link & activity
  • Green Flashing LED for Optical link & activity
  • Green LED for Power
Mechanical Dimensions (L x W x H)
  • 168mm x 28mm x 132mm / 6.6″ x 1.1″ x 5.2″
  • Rackmount (RK-CHASSIS)
Shipping Dimensions (L x W x H)
  • Package: 203mm x 152mm x 51mm / 8” x 6” x 2”
  • Weight: .90kg / 2lbs
Environmental / Temperature
  • Operating: 0°C to 50°C / 32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 90% non-condensing
Connectors
  • Network Port: RJ45 Connector
  • Network Port: SFPConnector
Data
  • Ethernet: 10/100/1000 (Gigabit) full or half-duplex
  • Optical
  • SFP Ports: 1
  • Optical Ethernet: 1000BASE

Warranty Information

Limited Lifetime Warranty
