MM110A/B

Categories: , Tags: ,

Fiber Media Converter, 2 KM, 10/100BaseTX to 100BaseFX, MM, 1310nm Receive, 1550nm Transmit, 6-15V, SC Connector. Requires MM-100B.

Overview

NITEK’s line of fiber optic Media Converters allows the customer to extend 10/100 or Gigabit Ethernet communications well beyond the reach of copper solutions. NITEK offers versions of Media Converters that work over pairs of Singlemode fiber or multi-mode fiber, and variants that will communicate over a single optical fiber. Max link distances range from 2 to 20km, and beyond. NITEK’s Media Converters also offer a range of configurations: rack-mount and voltage options such as low voltage (5VDC, 6-15VDC), industrial voltages (12-30VAC, 12-57VDC), and POE (48-57V). The POE models will output power on the network port to power remote cameras or devices.

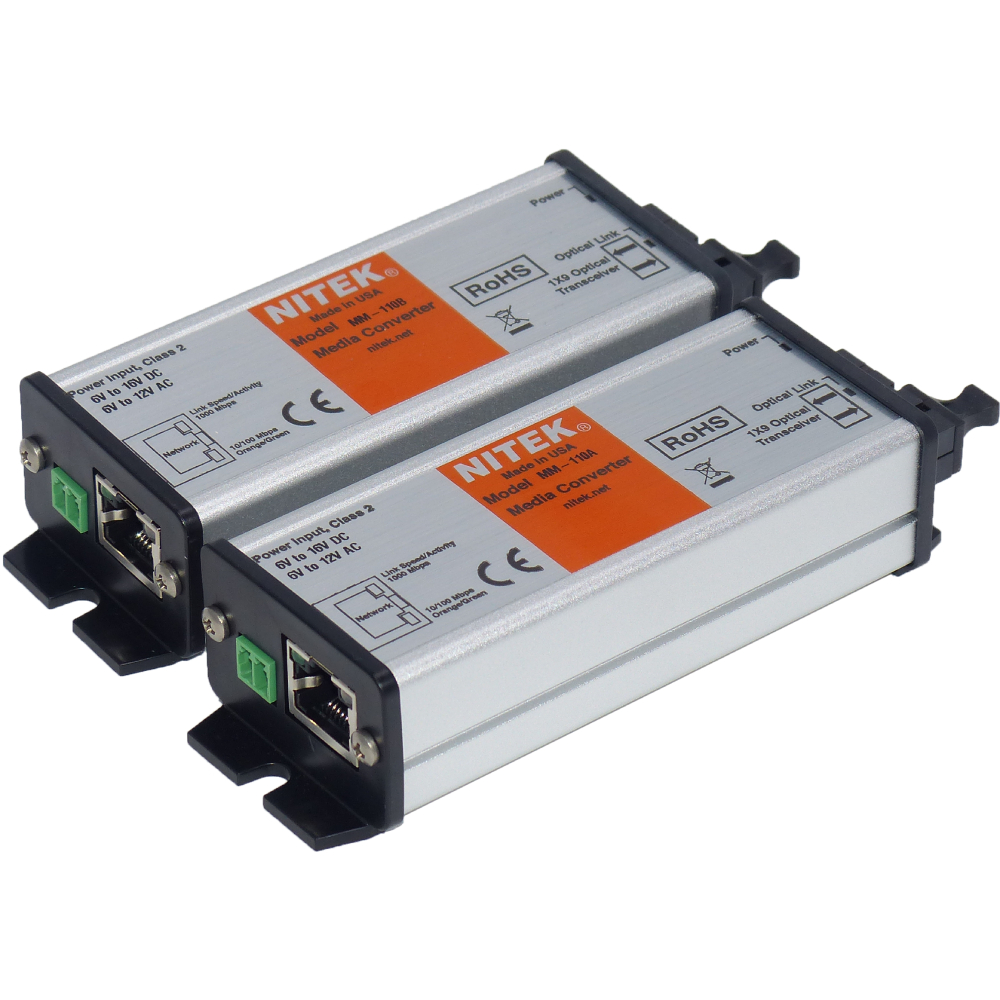

The MM1100A/B is a pair of two media converters designed to operate over a single fiber strand. The A unit must be paired with a B unit on the opposite end. The A unit is usually the camera/remote side.

Features

  • Miniature Design
  • 1x 10/100 (Fast Ethernet) RJ45 Network Port
  • 1x 100BASE-FX SC duplex multi-mode Port
  • Extends 10/100 Ethernet up to 2km over a single multi-mode fiber
  • Compliant with IEEE802.3 standards
  • Autosensing MDI/MDIX crossover on a Network Port
  • LED indicators for network signals, link status, and power
  • Power Supply included
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Electrical: Up to 100m on Network Port (10/100 copper)
  • Optical: Up to 2km using SC simplex multi-mode 50um or 62.5um fiber
Power
  • Requirements: 6-15VDC / 6-12VAC (12VDC recommended) 500mA max
  • Power Used: 2 Watts
LED Connectivity Indicators
  • Indication: Orange/Green Flashing LED for 10/100BASE electrical link & activity
  • Green Flashing LED for optical link & activity
  • Green LED for power
Mechanical Dimensions (L x W x H)
  • MM100A/B: 120mm x 44mm x 30mm / 4.7” x 1.7” x 1.2”

Shipping Dimensions (L x W x H)

  • MM110A: 178mm x 152mm x 51mm / 7” x 6” x 2”
  • Weight: 0.45Kg / 1lb
  • MM110B: 178mm x 152mm x 51mm / 7” x 6” x 2”
  • Weight: 0.45Kg / 1lb
Connectors
  • Network Port: RJ45 Connector
  • Optical Port: Simplex SC multi-mode fiber
Environmental / Temperature
  • Operating: 0°C to 70°C / 32°F to 158°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 90% non-condensing
  • Mean Time Between Failure: >100,000 Hours
Data
  • Ethernet: 10/100Mb full duplex
Optical
  • Optical Connector: SC Simplex
  • Optical Connector: X
  • Max Optical Power: 0dBm
  • Receiver Overload Power: 1dBm
  • Minimum Optical Budget: 15dB
  • Minimum Optical Launch Power: -15dBm
  • Minimum Receiver Sensitivity: -30dBm
  • MM110A Optical WavelengthTransmitter: 1310nm
  • MM110A Optical Wavelength Receiver: 1550nm
  • MM110B Optical WavelengthTransmitter: 1550nm
  • MM110B Optical Wavelength Receiver: 1310nm

Warranty Information

Limited Lifetime Warranty
