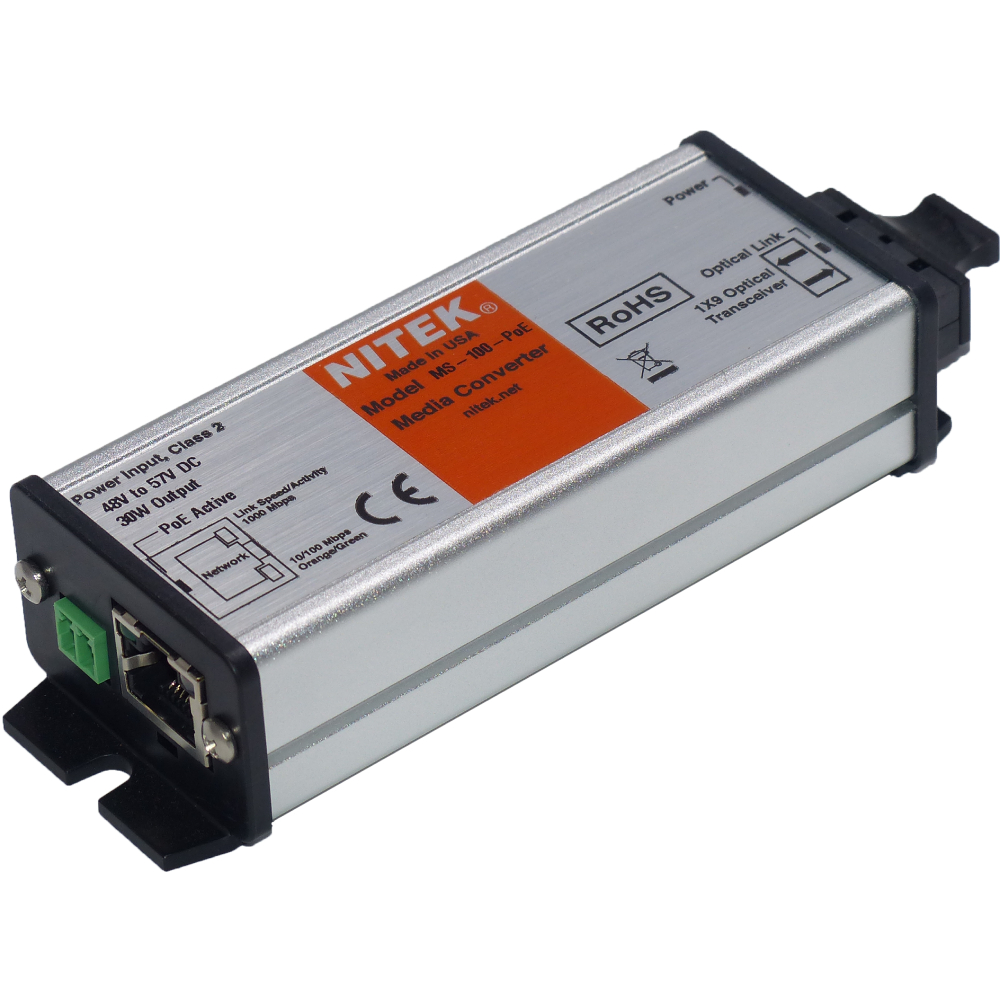

MS100POE

Categories: , Tags: ,

Fiber Media Converter, 20KM, 10/100BaseTX to 100BaseFX, SM, 1310nm, 48-57V, SC Connector, POE+

Overview

NITEK’s line of fiber optic Media Converters allows the customer to extend 10/100 or Gigabit Ethernet communications well beyond the reach of copper solutions. NITEK offers versions of Media Converters that work over pairs of Singlemode fiber or multi-mode fiber, and variants that will communicate over a single optical fiber. Max link distances range from 2 to 20km, and beyond. NITEK’s Media Converters also offer a range of configurations: rack-mount and voltage options such as low voltage (5VDC, 6-15VDC), industrial voltages (12-30VAC, 12-57VDC), and POE (48-57V). The POE models will output power on the network port to power remote cameras or devices.

The MS100POE is another of NITEK’s most popular Media Converters. The MS100POE is a rugged solution for extending 10/100 Ethernet up to 20km over SC terminated multi-mode optical fiber. The MS100POE offers 30W of POE injection into the Network Port to power attached devices.

Features

  • Miniature Design
  • 1x 10/100 (fast Ethernet) RJ45 Network port
  • 1x 100BASE-FX SC duplex Singlemode port
  • Extends 10/100 Ethernet up to 20km over Singlemode fiber
  • Injects up to 20km over Singlemode fiber
  • Injects up to 30W of POE power for remote devices
  • Compliant with IEEE802.af / IEEE802.3at standards
  • Autosensing MDI/MDIX crossover on a network port
  • LED indicators for network signals, link status, and power
  • Power supply included
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Electrical: Up to 100m on Network Port (10/100 copper)
  • Optical: Up to 20km using SC duplex Singlemode 9um fiber
Power
  • Requirements: 48-57VDC
LED Connectivity Indicators
  • Indication: Orange/Green Flashing LED for 10/100BASE electrical link & activity
  • Green Flashing LED for Optical link & activity
  • Green LED for Power
  • Green LED for POE
Mechanical Dimensions (L x W x H)
  • MS100POE: 120mm x 44mm x 30mm / 4.7” x 1.7” x 1.2”
  • Mounting: (2x) 8mm / 3/8″
Shipping Dimensions (L x W x H)
  • Package: 178mm x 152mm x 51mm / 7” x 6” x 2”
  • Weight: 0.45Kg / 1lbs
Environmental / Temperature
  • Operating: 0°C to 70°C / 32°F to 158°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 90% non-condensing
  • Mean Time Between Failure: >100,000 Hours
Connectors
  • Network Port: RJ45 Connector
  • Optical Port: Duplex SC 1310nm Singlemode fiber
Data
  • Ethernet: 10/100Mb full or half-duplex
Optical
  • Optical Wavelength: 1310nm
  • Optical Launch Power: -3dBm (max) to – 10dBm (min)
  • Minimum Receiver Sensitivity: -32dBm @1x10E-10 BER
  • Receiver Overload Power: -3dBm
  • Minimum Optical Budget: 23dB

Warranty Information

Limited Lifetime Warranty
