Overview

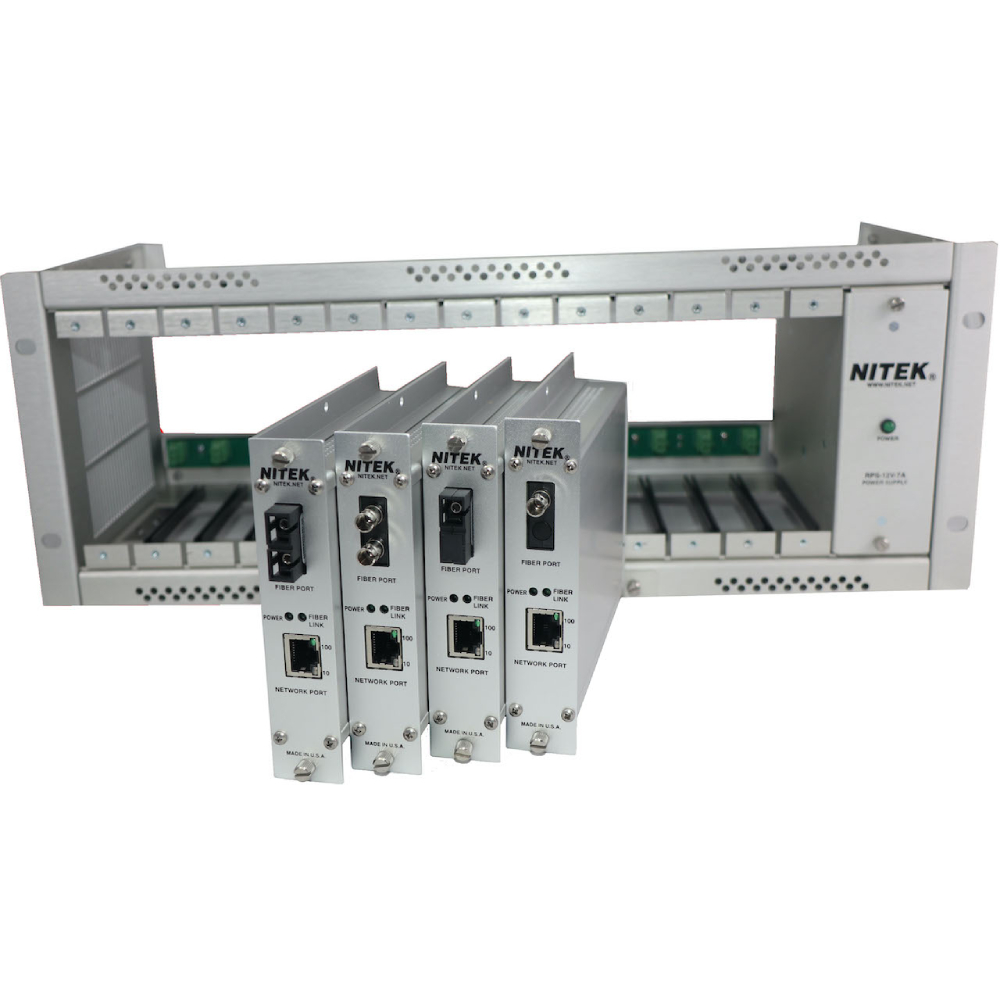

The RK5000 is a rack-mountable power supply for MM/MS/ML 4xx Media Converters. The RK5000 provides power for up to 14 Media Converters in a convenient 4RU format. The Rack is vented for passing cooling and provides a cable pass-through.
RK5000
19″ 3RU Modular Card Cage With Power Supply.
Features
- 19″ Rack-mountable (4RU) chassis for MM/MS/ML-4xx series media converters
- Provides power and mounting for up to 14 media converter cards
- Power supply is user-replaceable
- Cable pass-through
- Vented for passive cooling
- Anodized aluminum construction
- Limited Lifetime Warranty
- Designed, tested, manufactured, and supported in the U.S.A.
Technical Specs
Electrical
- Power Requirements: Universal 115VAC/230VAC 50/60Hz
- 3A/1.5 fuse @ 115VAC/230VAC
- 12V@7A output
- Front panel power indicator
- Front-replaceable power supply
- Capacity: 14 powered slots + power supply
Mechanical Dimensions
- 4RU 19″ Rack size 7.9″ / 201mm Depth
- Anodized aluminum construction
Shipping (L x W x H)
- Package: 543mm x 270mm x 264mm / 21.38″ x 10.62″ x 10.38″
- Weight: 2.72kg / 6lbs
Environmental / Temperature
- Cooling: Passive Cooling
- Operating: 0°C to 50°C / 32°F to 122°F
- Storage: -40°C to 85°C / -40°F to 185°F
- Humidity: Up to 90% non-condensing
- Mean Time Between Failure: >100,000 Hours
Warranty Information
Limited Lifetime Warranty
