Overview

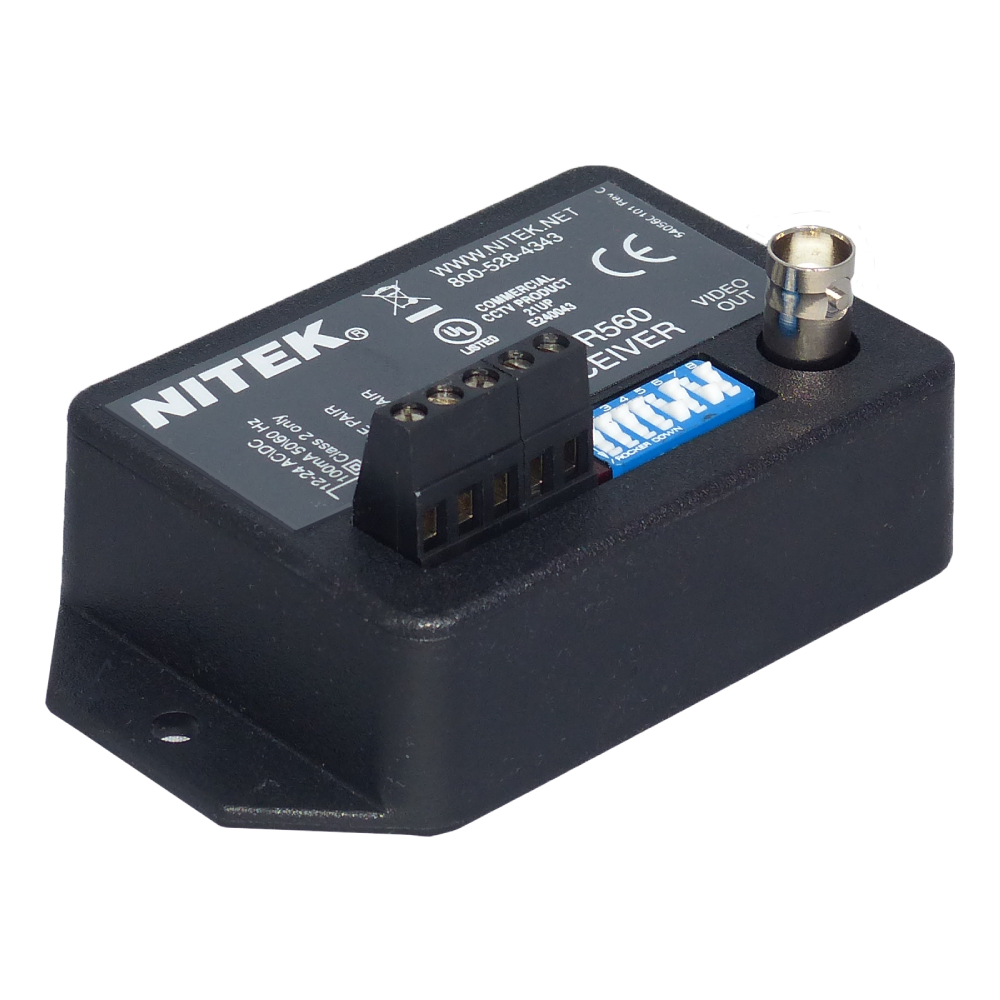

The TR560 is designed for operation over Category twisted pair cable and requires the use of a transmitter unit. The unit works equally well over existing communication and newly installed computer networks offering immunity from the ground loop, hum, and noise to produce maximum video quality with virtually no loss. A dip switch on the unit provides precise gain and frequency compensation adjustment, allowing the system to be “fine-tuned” for any cable. This digital adjustment technology provides easy adjustment for optimum performance over the entire operating range. The wide dynamic adjustment also allows cable length to be estimated with a wide safety margin when bidding CCTV twisted pair transmission jobs.
