Overview

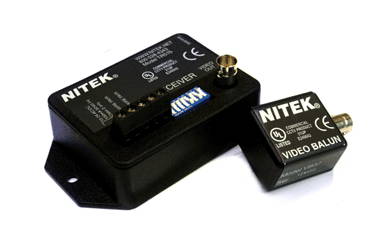

The TS515 is a complete Twisted Pair Video system made up of a TR515 receiver unit and a VB37 balun unit. The system is designed to operate over Category 2, 3, 4, 5, 6 or 7 twisted pair cable. It works well over existing communication, computer network spare pairs, or new cable installations. A highly balanced transmitter output assures that the system will not interfere with other network equipment. Advanced receiver and transmitter electronics provide optimum video quality and complete immunity from the ground loop, hum, and noise. Both the transmitter and receiver provide adjustment for gain and frequency compensation allowing the system to be fine-tuned for the cable. These unique adjustments provide optimum performance over the entire operating range of the system and allow cable lengths to be estimated with a wide safety margin. The receiver and transmitter units each require 24 VAC power. In multiple receivers and/or transmitter applications a common supply can be used for the system.
