VH3239

SKU: P 661955112066 Categories: , Tags: ,

32 Channel Video Balum Transceiver Hub – up to 750 feet. Includes: VH3200 Chassis and four (4) VB41x8 Transceiver Cards.

Overview

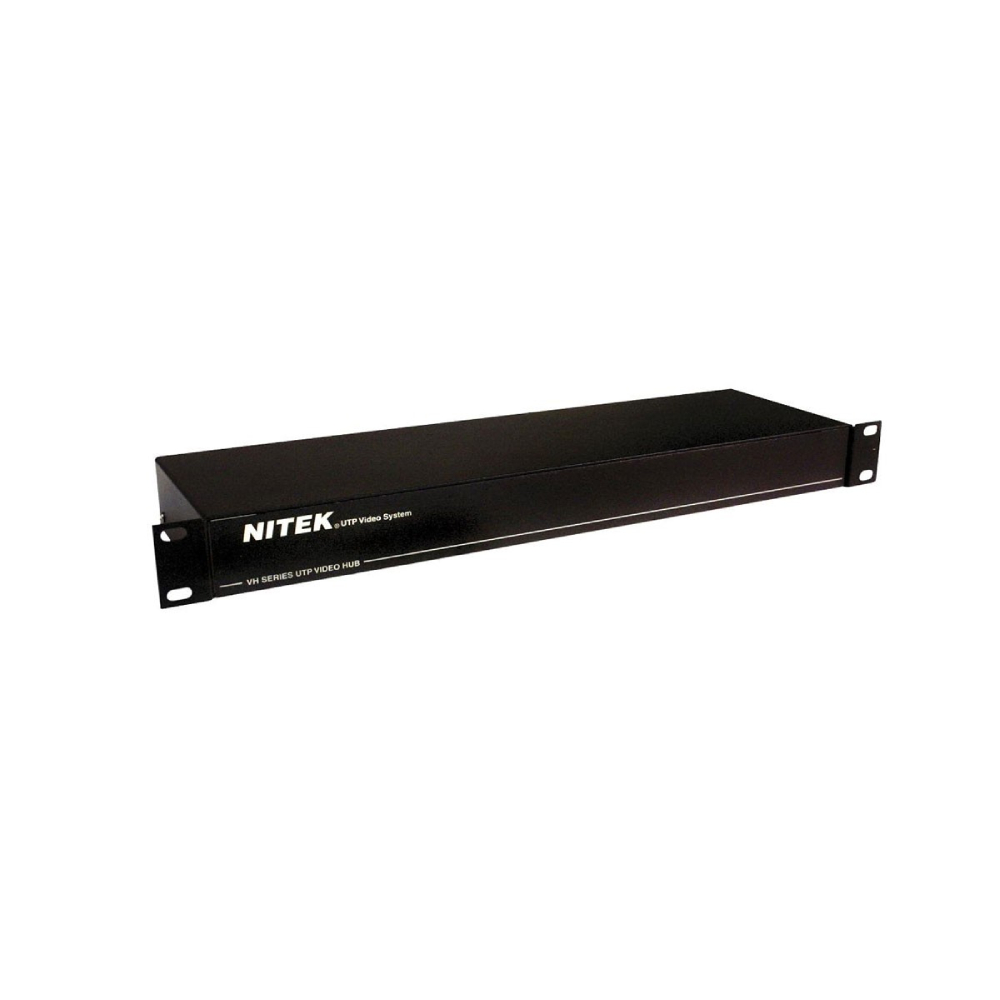

The VH3239 is a 32 port video balun hub with built-in surge suppression. Systems operate with other Nitek UTP video equipment including, video balun hubs, standard video balun transceivers, or active receivers.

The VH3239 video balun hubs are multi-channel video transmission devices that provide a low-cost means of sending quality live video over Category UTP cabling. The systems can also adapt to existing communication and computer network spare pairs or new cable installations. The VH3239 can send video up to 750 feet (225 meters) when used with other VB37 or VB39 family products. When used with model TR515 or TR560 active receivers, distances of 1,500 feet (450 meters) and 3,000 feet (900 meters), respectively, can be attained. The VH3239 is designed to provide superior immunity from noise and interference, such as RFI and EMI.

Features

  • Remotely powers network devices and transmits IP data network category cables up to 600 meters/1968 feet
  • Rack-mounted multi-channel (16) EtherStretch solution
  • Includes a built-in power source for all connected devices
  • Gigabit output network connectivity
  • Supports 10/100 and POE over UTP (CAT4e / CAT6) cables
  • Supports mega-pixel technology
  • SFP ports support fiber interfacing
  • Supports any network device, including IP cameras
  • NEXTT provides remote monitoring
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Input
  • Standard BNC connector for 1 Vpp composite video Monochrome or Color
Video Format
  • HD TVI / CVI /AHD
  • PAL, SECAM, NTSC, RS170
Twisted Pair Connection
  • Screw terminals
Common Mode Rejection
  • 70dB
Operating Frequency
  • DC to 40 MHz
Recommended
  • w/passive units – 750 feet
Transmission Distance
  • w/passive units – 3,000 feet
Wire Spec
  • 26 to 18 AWG twisted pair
  • DC Loop Resistance: 51 Ohms / 1,000 feet
  • Nominal Capacitance: 17pF/ft
  • Impedance: 100 Ohms +/-20%
  • Category Wire: 2 or better
Environmental / Temperature
  • Operating: 0°C to 50°C/ -32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 95% non-condensing
Mechanical Dimensions (W x H x L)
  • 1 RU x 6.0″ D
Shipping Dimensions (W x H x L)
  • Package: 8.5″ x 18″ x 24″
  • Weight: 5.44kg / 12lbs

Warranty Information

Limited Lifetime Warranty
