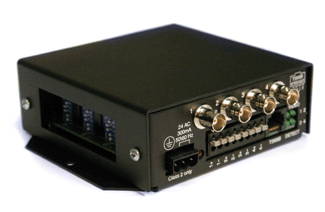

VH451

SKU: P 661955056056 Categories: , Tags: ,

4 Channel Video Balun Hub – 100 feet to 1,500 feet.

Overview

The VH451 is an Active Video receiver that provides a low cost of receiving quality video over Category cabling. The VH451 can receive up to 4 Analog video streams 1500 feet away when used with Nitek’s passive video baluns. The VH451 provides immunity to noise and interference, utilizing DIP switches for loss and gain control. The lightweight compact design and built-in surge suppression make it ideal for those hard to reach, extended run applications.

Features

  • Remotely powers network devices and transmits IP data network category cables up to 600 meters/1968 feet
  • Rack-mounted multi-channel (16) EtherStretch solution
  • Includes a built-in power source for all connected devices
  • Gigabit output network connectivity
  • Supports 10/100 and POE over UTP (CAT4e / CAT6) cables
  • Supports mega-pixel technology
  • SFP ports support fiber interfacing
  • Supports any network device, including IP cameras
  • NEXTT provides remote monitoring
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Power Requirements
  • 12-24 VAC/VDC 300mA max. Class 2
Input
  • Balanced low voltage current loop
Output
  • 1 Vpp composite video Monochrome or Color
Common Mode Rejection
  • 70dB
Video Format
  • PAL, SECAM, NTSC, RS170, CCIR (Color or B/W)
Twisted Pair Connection
  • Screw terminals
Wire Spec
  • 26 to 18 AWG twisted pair
DC Loop Resistance
  • 51 Ohms/1,000 feet
Nominal Capacitance
  • 17pF/ft
Impedance
  • 100 Ohms +/- 20%
Category Wire
  • 2 or better
Operating Frequency
  • DC to 10 MHz
Environmental / Temperature
  • Operating: 0°C to 50°C/ -32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 95% non-condensing
Mechanical Dimensions (W x H x L)
  • 1.8″ x 5.5″ x 4.6″
Shipping Dimensions (W x H x L)
  • Package:
  • Weight: 3lbs

Warranty Information

Limited Lifetime Warranty
