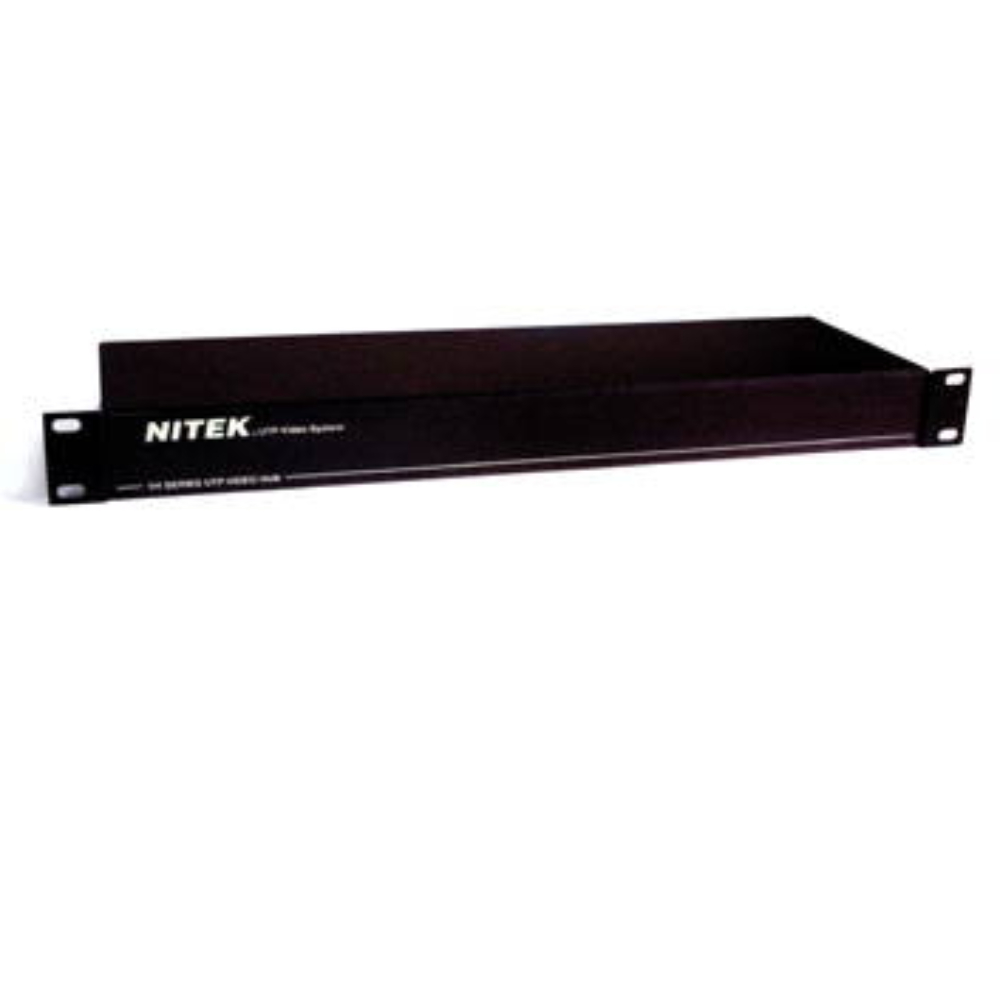

VH839

SKU: P 661955051020 Categories: , Tags: ,

8 Channel Video Balun Transceiver Hub – up to 750 feet

Overview

The VH839 is an eight-port video balun hubs with built-in surge suppression. Systems operate with other Nitek UTP video equipment including, video balun hubs, standard video balun transceivers or active receivers.

The VH839 video balun hubs are multi-channel video transmission devices that provide a low cost means of sending quality live video over Category UTP cabling. The systems can also adapt to existing communication and computer network spare pairs, or new cable installations. The VH839 can send video up to 750 feet (225 meters) when used with other products in the VB37 or VB39 family. When used with model TR515 or TR560 active receivers, distances of 1,500 feet (450 meters) and 3,000 feet, (900 meters), respectively, can be attained. The VH839 is designed to provide superior immunity from noise and interference, such as RFI and EMI.

Features

  • Built-in protection from power surges and transients
  • Video & P/T/Z over a single pair with “up-the-coax” systems when used with passive baluns
  • Highly compact, only 1 RU in height Conveniently integrates with Nitek modular systems
  • Video can be run in the same cable with telephone, computer signals, and power
  • Works with any HD TVI/CVI/AHD or NTSC and PAL
  • Immunity to noise and interference
  • Passive units—require no power
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Recommended Transmission Distance
  • w/passive units—750 feet
  • w/active units—3,000 feet
Video Format
  • HD TVI/CVI/AHD PAL, SECAM, NTSC, RS170, CCIR (Color or B/W)
Twisted Pair Connectors
  • VH839—Screw terminals
  • VH839M—RJ45 modular jacks
Wire Spec
  • 26 to 18 AWG twisted pair
  • DC Loop Resistance
  • 51 Ohms/1,000 feet
Nominal Capacitance
  • 17pF/ft
Impedance
  • 100 Ohms +/- 20%
Category Wire
  • 2 or better
Operating Frequency
  • DC to 40 MHz
Transient Immunity
  • Built-in
Environmental / Temperature
  • Operating: 0°C to 50°C/ -32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 95% non-condensing
Mechanical Dimensions (W x H x L)
  • 1 RU x 6.0” D

Shipping Dimensions (W x H x L)

  • Package:
  • Weight:

Warranty Information

Limited Lifetime Warranty
