Overview

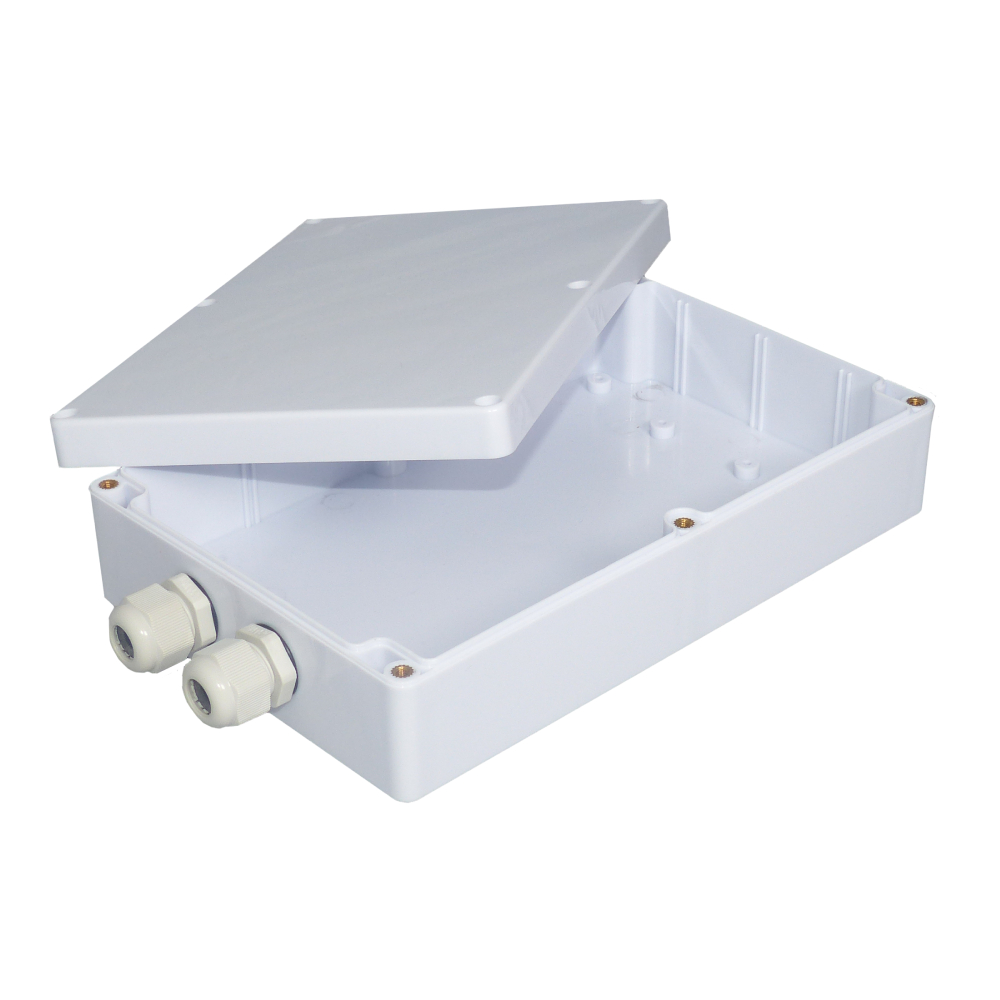

The WP1325 enclosure is a polycarbonate high-impact NEMA 4X rated box equipped with neoprene gaskets to prevent the ingress of moisture and dust. The box comes with two cable entries fitted with UL94V-2 rated nylon hex cable glands to maintain the weatherproof seal.

Features

NEMA 4x rated outdoor housing with glands
Designed to IP65 of IEC529
Meets NEMA 1, 2, 4, 4X, 12 and 13 specifications
Cover Attaching Screws are M-4 Stainless Steel, Non-Magnetic and Fasten into Threaded Brass Inserts
Polycarbonate Material
Limited Lifetime Warranty
Manufactured and supported in the U.S.A.

Technical Specs

Mechanical Dimensions (L x W x H)

53mm x 252mm x 146mm / 2.1″ x 9.9″ x 5.7″
Internal Volume: 98 in3

Shipping Dimensions (L x W x H)

Package: 53mm x 252mm x 146mm / 2.1″ x 9.9″ x 5.7″
Weight: 0.9kg / 2lbs

Environmental / Temperature

Polycarbonate (Lt. Gray): -40°C to 120°C / -40°F to 248°F
Storage: -40°C to 80°C / -40°F to 176°

Warranty Information

Limited Lifetime Warranty
